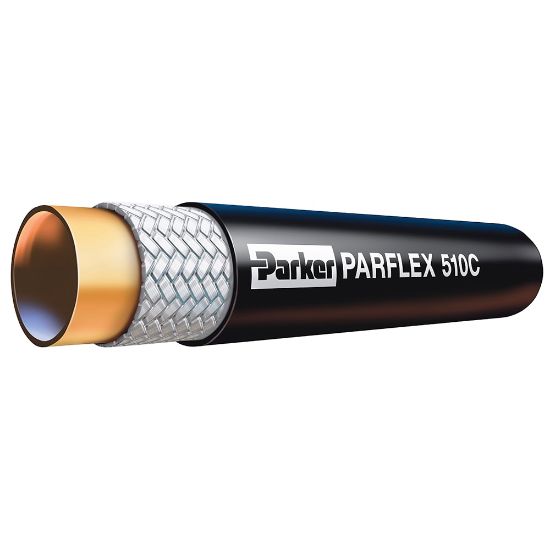

510C-6 - OBSOLETE: Flexible Hose - 510C

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	997 in stock

SKU 510C-6

$5.71/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Hose Style	Single	Outside Diameter	16.3 mm
Inside Diameter	10 mm	Weight	0.14 kg/m
Maximum Operating Pressure	15.5 MPa	Maximum Operating Temperature	100 °C
Compatible Fitting	51 Series	Division	Parflex Division
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Media	Water
Minimum Bend Radius	51 mm	Minimum Operating Temperature	-40 °F
Application	Machine Tools	Specifications Met	SAE 100R7
