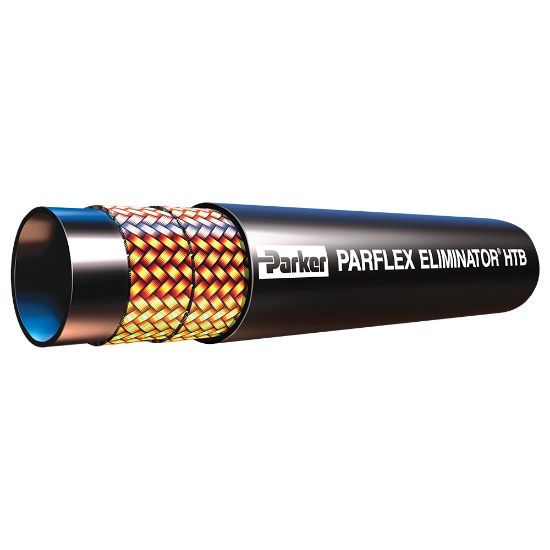

HTBR08-250 - OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR

Name: HTBR08-250 - OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR
SKU: HTBR08-250
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:

10 in stock

Kansas City, KS

Partner Available:

23 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HTBR08-250

POR

Products specifications

Attribute name	Attribute value
UOM	FT	Length	250 ft
Hose I.D. (inch)	1/2	Size	-8
Maximum Operating Temperature	212 °F	Compatible Fitting	43 Series
Hose Inner Tube Material	Copolyester	Division	Parflex Division
Length	250 ft	Cover Material	Synthetic Rubber
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Specifications Met	MSHA	Application	Industrial Machinery
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	2 Braids of High Tensile Wire
Cover Structure	Smooth	Minimum Bend Radius	178 mm
Weight	0.43 lb/ft	Maximum Operating Pressure	34.4 MPa
Inside Diameter	1/2 inch	Outside Diameter	0.850 inch
