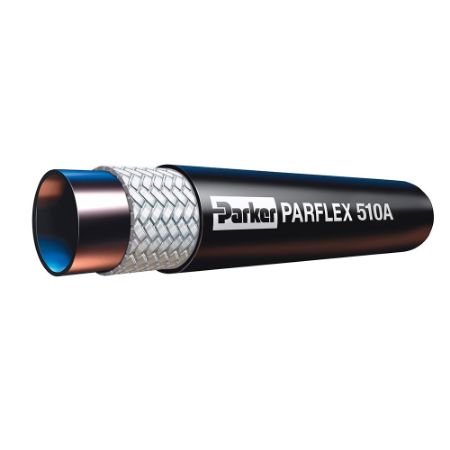

OBSOLETE: Refrigerant Hose - 510A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s 510A Refrigerant Hose provides medium pressure service for common refrigeration fluid applications and is compatible with most compressor lubrication oils. The specially formulated core tube yields reduced permeation with refrigerants. Permanent crimp or field attachable fittings available for in field hose replacement.

Markets:
• Industrial
• Mobile Equipment
• Transportation
• Processing

Features/Benefits:
• Specially formulated core tube to reduce permeation
• Fiber reinforced
• Urethane jacket provides abrasion resistance

Applications:
• Freezers
• Air conditioners
• Refrigeration compressors

Certifications/Compliance:
• SAE 100R7
• MSHA Accepted except size -4

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Division	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Design Factor	Media	Minimum Operating Temperature	Cover Material	Hose Reinforcement Material	Minimum Bend Radius	Specifications Met	Application	Outside Diameter	Maximum Operating Pressure	Inside Diameter	Weight
	510A-3	Backordered	237 in stock	$8.54/foot	FT	3/16	Parflex Division	51 Series	212	Nylon Blend	4:1	Coolants	-40	Polyurethane	Fiber	2	MSHA	Industrial Machinery	0.430	3000	3/16	0.05
	510A-4	Backordered	279 in stock	$8.77/foot	FT	1/4	Parflex Division	56 Series	212	Nylon Blend	4:1	Coolants	-40	Polyurethane	Fiber	2-1/2	SAE 100R7	Industrial Machinery	0.470	2750	1/4	0.05
