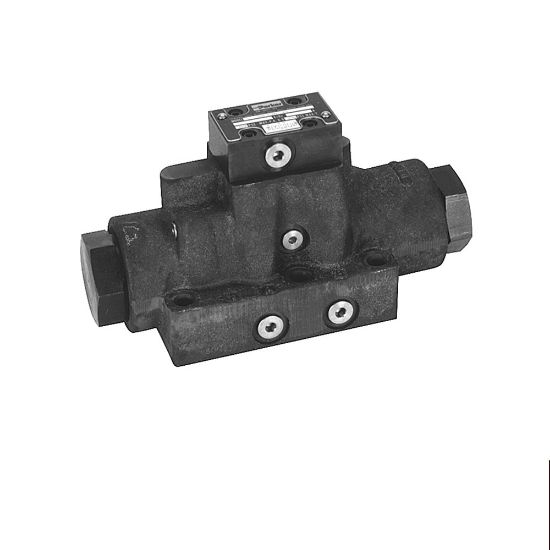

D6P8C2N - Oil Operated Directional Control Valve - D6P Series

Parker’s D6P directional control valves are 5-chamber, pilot operated valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D6P8C2N

$1,115.52/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
Maximum Operating Pressure	3000 PSI	Maximum Flow Rate	Up to 100 GPM depending on spool
Mounting Type	Subplate	Mounting Type	Subplate
Minimum Operating Temperature	-4	Body Material	Gray Iron
Maximum Operating Pressure	3000 psi	Weight	11 kg
Spool Code	P to T	Actuation Type	Hydraulic Pressure
Valve Type	Oil Operated Directional Control Valve	Size	CETOP 5
Division	Hydraulic Valve Systems Division	Spool Position	Spring Centered
Maximum Flow Rate	n/a	Maximum Operating Temperature	+140
Options	n/a	Seal Material	Nitrile

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D6P series (PDF)
