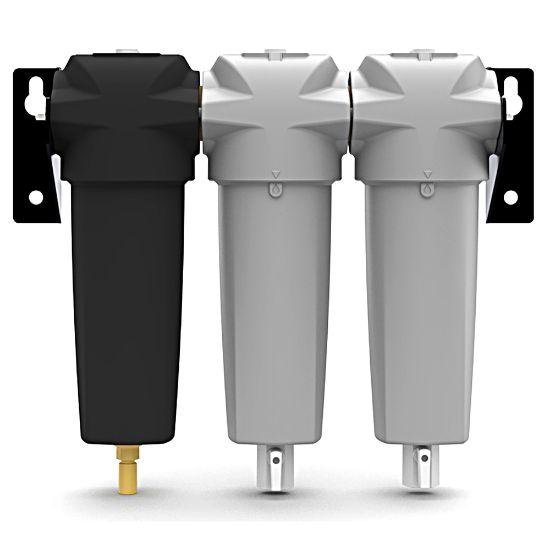

WSPX035GGFX - OIL-X Filters For Railway and Transportation Applications

Compressed air filters shock and vibration tested to BS EN 60068-2 27:2009, IEC 60068-264:2019.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU WSPX035GGFX

$939.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	1260 m³/h @ 7 barg (742 cfm @ 102 psig)
Compatible Element	N/A	Drain Option	Automatic Float
Electrical Requirements	N/A	Drain	Float
Connection Type	BSPP	Port Size	1½"
Product Type	Compressed Air Filter	Operating Pressure	22 to 232 psig
Operating Temperature	2 to 60 °C	Depth	6.18 inch
Materials of Construction	Die Cast Aluminium	Product Series	OIL-X Grade WS
Pressure Differential	0.8 psi Initial Saturated, 100% Flow	Application	Compressed Air and Nitrogen Gas Applications
Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II	Brand	Parker
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Filter Type	Water Separator	Weight	6.87 kg
Technology	Filtration	Micron Rating	n/a
Height	17.32 inch	Width	120.0 mm
Division	Gas Separation and Filtration EMEA

Product resources

Literature and Reference Materials

Product Information Sheet - OIL-X Railway and Transportation Filters - (English) (PDF)
