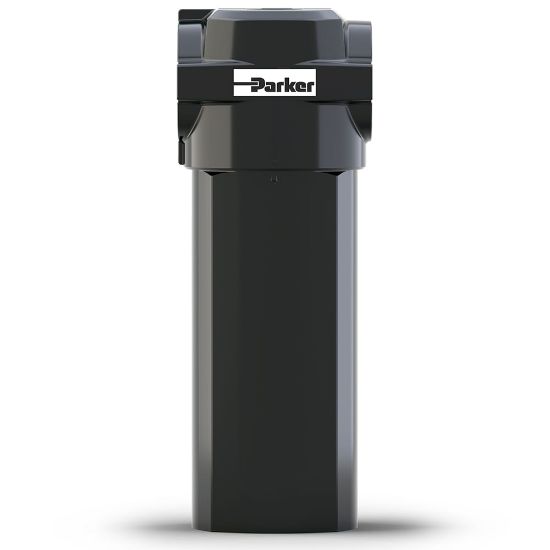

WSPX055JNFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU WSPX055JNFX

$1,853.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	2880 m³/h @ 7 barg (1695 cfm @ 102 psig)
Connection Type	NPT	Electrical Requirements	N/A
Drain Option	Automatic Float	Port Size	3 inch
Division	Gas Separation and Filtration Division EMEA	Weight	8.47 kg
Operating Temperature	35 to 149 °F	Depth	7.2 inch
Micron Rating	n/a	Height	844.0 mm
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Width	7.56 inch	Filter Type	Water Separator
Product Type	Compressed Air Filter	Operating Pressure	22 to 232 psig
Technology	Filtration	Materials of Construction	Die Cast Aluminium
Application	Compressed Air and Nitrogen Gas Applications	Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Product Series	OIL-X Grade WS	Pressure Differential	111.0 mbar Initial Saturated, 100% Flow
Brand	Parker
