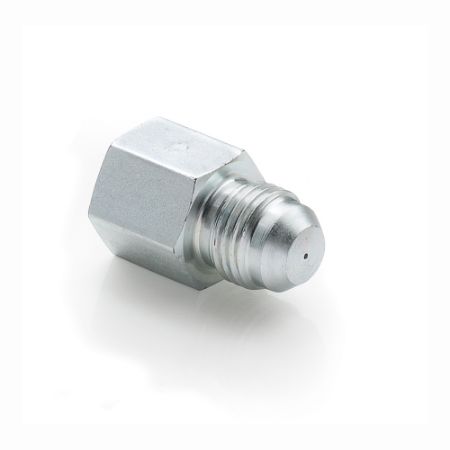

Orifice Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Orifice Fittings come in both 37° flare and O-ring face seal (ORFS) configurations. These compact and cost effective orifice fittings allow OEMs to pre-set, at the factory, a specified orifice in specific hydraulic tube or hose lines, which eliminates or minimizes the need for costly flow control valves.
Markets:
• Construction
• Agriculture
• Mining
• Oil & Gas
• Transportation
• Alternative fuel
Features/Benefits:
• Available in commonly pre-set orifice sizes, orifice fittings provide OEMs with control over final factory established flow and speed characteristics of the hydraulic system.
• Designed for permanent or temporary installation, orifice fittings can be easily installed in-line into hydraulic system by simply connecting between hose swivel and adapter.
• Orifice size is permanently stamped on body for ease of identification.
• Can eliminate or minimize costly flow control valves.
• A line of orifice adapters that will replace a traditional port adapter is also available upon request.
• Available in steel in sizes 1/4”, 3/8” and ½” with working pressures up to 12,000 psi.
Applications:
• Fixed rotation speed for hydraulic motors.
• Fixed speed on cylinder extend or retract.
Read More...Markets:
• Construction
• Agriculture
• Mining
• Oil & Gas
• Transportation
• Alternative fuel
Features/Benefits:
• Available in commonly pre-set orifice sizes, orifice fittings provide OEMs with control over final factory established flow and speed characteristics of the hydraulic system.
• Designed for permanent or temporary installation, orifice fittings can be easily installed in-line into hydraulic system by simply connecting between hose swivel and adapter.
• Orifice size is permanently stamped on body for ease of identification.
• Can eliminate or minimize costly flow control valves.
• A line of orifice adapters that will replace a traditional port adapter is also available upon request.
• Available in steel in sizes 1/4”, 3/8” and ½” with working pressures up to 12,000 psi.
Applications:
• Fixed rotation speed for hydraulic motors.
• Fixed speed on cylinder extend or retract.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection 1 Style | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Connection 2 Style | Orifice | O-Ring Material | Body Material | Shape | Maximum Dynamic Pressure | Division | Connection Type | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 LOHL6-S .015 ORIFICE | Backordered | Backordered | $32.61/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.015 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 LOHL6-S .031 ORIFICE | Backordered | 43 in stock | $40.22/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.031 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 LOHL6-S .047 ORIFICE | Backordered | 3 in stock | $40.22/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.047 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 LOHL6-S .062 ORIFICE | Backordered | 2 Limited Stock | $43.35/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.062 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 LOHL6-S .078 ORIFICE | Backordered | Backordered | $32.29/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.078 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 LOHL6-S .094 ORIFICE | Backordered | Backordered | $87.91/each | EA | Male O-ring Face Seal | 1/4 | 1/4 | Female O-ring Face Seal Swivel with Orifice | 0.094 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 XHX7-S .015 ORIFICE | Backordered | 37 in stock | $26.34/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.015 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 XHX7-S .031 ORIFICE | Backordered | 293 in stock | $26.08/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.031 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | 0.039568345323741004 lb | |
| 4 XHX7-S .047 ORIFICE | Backordered | 18 in stock | $26.34/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.047 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 XHX7-S .062 ORIFICE | 1 Limited Stock | 19 in stock | $20.26/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.062 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 XHX7-S .078 ORIFICE | Backordered | Backordered | $69.41/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.078 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 4 XHX7-S .094 ORIFICE | 2 Limited Stock | 1 Limited Stock | $53.32/each | EA | Male 37° Flare with Orifice | 1/4 | 1/4 | Female 37° Flare | 0.094 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 LOHL6-S .015 ORIFICE | Backordered | Backordered | $21.12/each | EA | Male O-ring Face Seal | 3/8 | 3/8 | Female O-ring Face Seal Swivel with Orifice | 0.015 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 LOHL6-S .047 ORIFICE | Backordered | Backordered | $20.83/each | EA | Male O-ring Face Seal | 3/8 | 3/8 | Female O-ring Face Seal Swivel with Orifice | 0.047 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 LOHL6-S .062 ORIFICE | Backordered | Backordered | $20.83/each | EA | Male O-ring Face Seal | 3/8 | 3/8 | Female O-ring Face Seal Swivel with Orifice | 0.062 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 LOHL6-S .094 ORIFICE | Backordered | Backordered | $19.46/each | EA | Male O-ring Face Seal | 3/8 | 3/8 | Female O-ring Face Seal Swivel with Orifice | 0.094 | 90 Durometer Nitrile | Steel | Straight | 12000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 XHX7-S .015 ORIFICE | Backordered | 20 in stock | $27.65/each | EA | Male 37° Flare with Orifice | 3/8 | 3/8 | Female 37° Flare | 0.015 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | ||
| 6 XHX7-S .031 ORIFICE | Backordered | 148 in stock | $27.38/each | EA | Male 37° Flare with Orifice | 3/8 | 3/8 | Female 37° Flare | 0.031 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | 0.022473021582733812 lb | |
| 6 XHX7-S .047 ORIFICE | Backordered | 111 in stock | $27.65/each | EA | Male 37° Flare with Orifice | 3/8 | 3/8 | Female 37° Flare | 0.047 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | 0.039568345323741004 lb | |
| 6 XHX7-S .062 ORIFICE | Backordered | 195 in stock | $27.38/each | EA | Male 37° Flare with Orifice | 3/8 | 3/8 | Female 37° Flare | 0.062 | na | Steel | Straight | 10000 psi | Tube Fittings Division | In-Line Orifice Fitting | 0.022473021582733812 lb |
