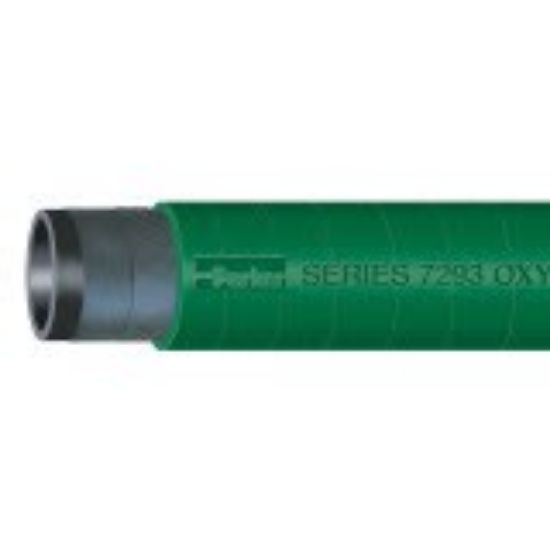

7293-2000 - Oxygen Charging Hose, Series 7293

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	95 in stock

SKU 7293-2000

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Media	Industrial Gases (Oxygen)	Hose Inner Tube Material	Black
Application	Compressed Gas	Specifications Met	n/a
Minimum Operating Temperature	-22 °F	Hose Reinforcement Material	4 Plies of Textile
Minimum Bend Radius	14 inch	Cover Structure	Wrapped
Cover Material	Chloroprene Rubber (CR)	Cover Color	Green
Weight	0.77 kg	Maximum Operating Pressure	500 psi
Inside Diameter	2 inch	Package Type	Coil
Outside Diameter	70.2 mm	Length per Package	100 ft
Maximum Operating Temperature	80 °C	Compatible Fitting	7661 Series
Division	Hose Products Division

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
