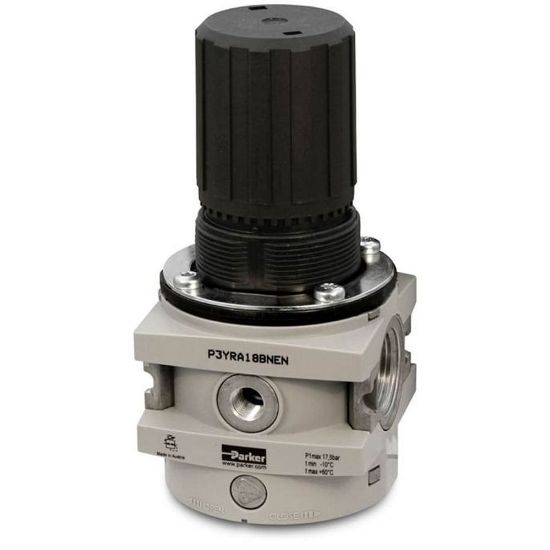

P3YRA98BNJN

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU P3YRA98BNJN

$227.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Operating Temperature	160 °F
Port Size	3/4 Inch, 1 Inch	Type	Pneumatic Regulator - Manual Adjustable, Hi-Flow Regulator
Min. Operating Temperature	14 °F	Flow Rate	125+ / High dm3/sec, 680 SCFM, 321 dm3/sec, 250+ / High SCFM
Material	Aluminum	Regulator Type	Relieving/Non Rise (Standard)
Parker Group	Automation	Pressure Control Range	0 to 175 psig, 0 to 232 psig (0 to 16 Bar, 0 to 12 Bar)
Parker Division	Pneumatic	Seal Material	Nitrile
Gauge Port Size	1/4 Inch	Max. Inlet Pressure Rating	0 to 253 psig (0 to 17.5 Bar)
Port Type	BSPP, NPT
