P4CG2001C002

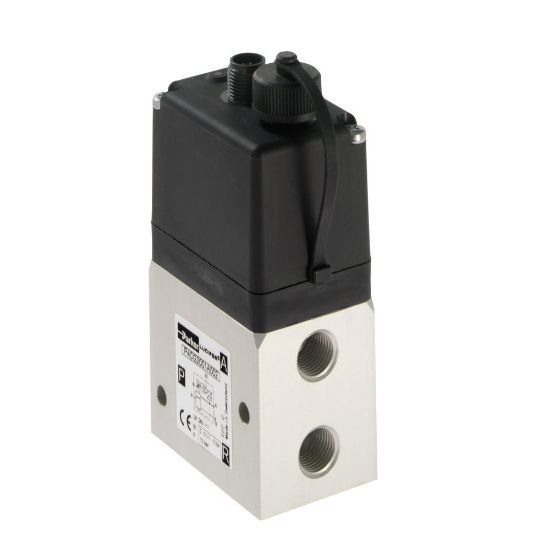

Parker P4CG2001C002 | Pressure Regulator | Port Size 1/4 Inch BSP | For Fluid Lubricated or Non Lubricated Air; Neutral Gases | Control Signal 4 - 20 mA

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU P4CG2001C002

$3,658.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	EN 61000-6-1: 2001 , EN 61000-6-2: 2001 , EN 61000-6-3: 2001 , EN61000-6-4:2001
For Fluid Type	Lubricated or Non Lubricated Air, Neutral Gases	Maximum Regulating Pressure	10 bar
Control Signal	4 - 20 mA	Maximum Pressure Differential	12 bar
Port Size	1/4 Inch BSP	Filter Efficiency Rating	50 Micron
Materials of Construction	Silicon free	Operational Life	> 50 Million Changes of Control Signal Steps
Maximum Flow Rate	70 m3/h	Hysteresis	± 50 mbar
Power Supply Voltage	24 VDC ± 15%	Minimum Pressure Differential	0 bar
Maximum Ambient Temperature	50 °C	Mounting Position	Indifferent (Recommended Position: Upright; Electronic Part on Top)
Minimum Ambient Temperature	'0 °C	Electrical Connection	M12 - 8 Pin; Male Connector Power Supply/Control Signal
Protection mode	IP65
