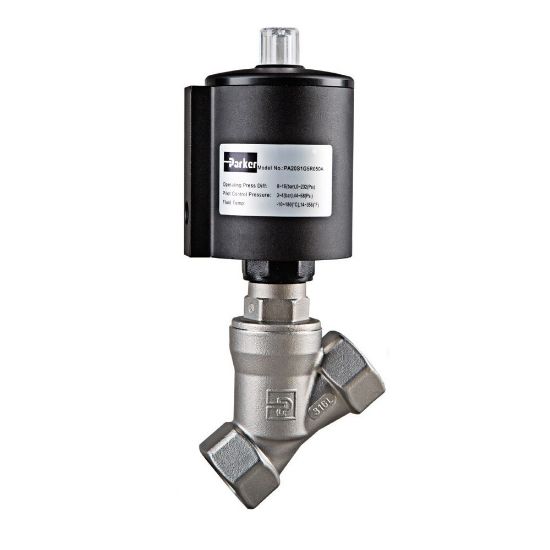

PA20SAN5S050A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	1 Limited Stock

SKU PA20SAN5S050A

$407.28/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Function	2-Way
Body Material	304 Stainless Steel	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Maximum Steam Pressure	N/A	Minimum Pilot Pressure	65.3 psi
Actuator Housing Material	Aluminium	Port Size	3/4 inch
Maximum Operating Pressure	145 psi	Division	Fluid Control Division
Brand	Parker	Division	Fluid Control Division
Technology	Pneumatics	Product Type	Angle Valve
Actuation Type	Air Pilot	Maximum Operating Pressure	145.0 psi
Maximum Operating Temperature	140 °F	Body Material	304 Stainless Steel
Seal Material	PTFE	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Product Style	Pneumatic - On/Off	Flow Coefficient	10.5 Cv
Connection Size	3/4 inch	Materials of Construction	Aluminium (Actuator Housing)
Connection Type	NPT	Configuration	Normally Closed - Under Seat Anti-Waterhammer
For Fluid Type	Air	Function	2-Way
Maximum Fluid Temperature	356 °F	Orifice Size	0.71
Minimum Operating Pressure	0 psi	Signal Input	n/a
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	65.3 psi
Actuator Size	50 mm
