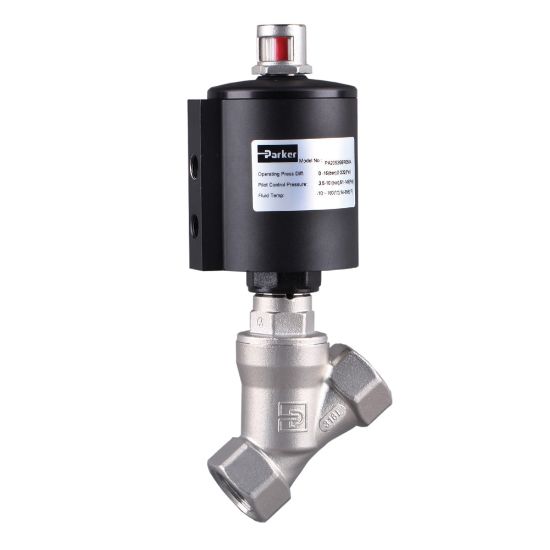

PA40S3N8S080A - PA Series Angle Seat Valves

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU PA40S3N8S080A

$614.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	2-Way
Body Material	304 Stainless Steel	Configuration	Normally Open - Under Seat
Maximum Steam Pressure	130 psi	Minimum Pilot Pressure	43.5 psi
Actuator Housing Material	Aluminium	Maximum Operating Pressure	232 psi
Port Size	1-1/2 inch	Division	Fluid Control Division
Brand	Parker	Division	Fluid Control Division
Technology	Fluid & Gas Handling	Product Type	Angle Valve
Actuation Type	Air Pilot	Maximum Operating Pressure	232.0 psi
Maximum Operating Temperature	140 °F	Body Material	304 Stainless Steel
Seal Material	PTFE	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Product Style	Pneumatic - On/Off	Flow Coefficient	36.2 Cv
Connection Size	1-1/2 inch	Materials of Construction	Aluminium (Actuator Housing)
Connection Type	NPT	Configuration	Normally Open - Under Seat
For Fluid Type	Air	Function	2-Way
Maximum Fluid Temperature	356 °F	Orifice Size	1.38
Minimum Operating Pressure	0 psi	Signal Input	n/a
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	43.5 psi
Actuator Size	80 mm
