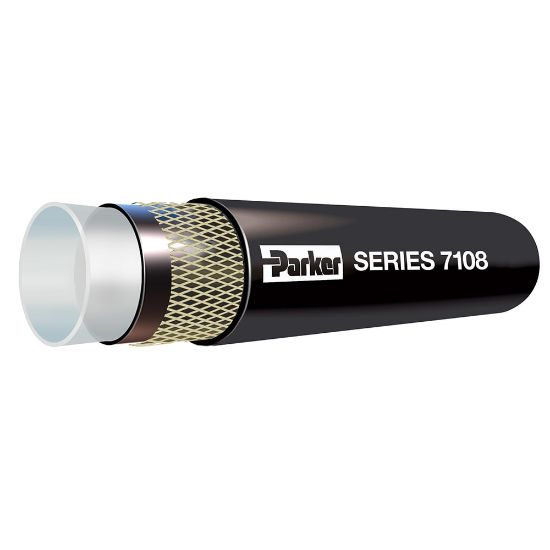

7108-381 - Paint Fluid Hose, Series 7108

Paint fluid hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 200°F and 750 psi, Series 7108

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	390 in stock

SKU 7108-381

$5.44/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	500	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	43 Series	Maximum Operating Temperature	93 °C
Length per Package	500 ft	Division	Hose Products Division
Minimum Operating Temperature	-18 °C	Cover Material	Chloroprene Rubber (CR)
Cover Structure	Smooth	Minimum Bend Radius	101.6 mm
Media	Chemicals (Lacquers)	Outside Diameter	17.3 mm
Package Type	Reel	Specifications Met	n/a
Application	Chemical Transfer	Hose Reinforcement Material	2 Plies of Aramid
Cover Color	Black	Weight	0.24 kg/m
Maximum Operating Pressure	34.5 bar	Inside Diameter	3/8 inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
