370-Z-222A - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 370-Z-222A

$193.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Collapse Pressure (psi)	290 psi
UOM	EA	Efficiency βx(C) ≥ 200	9 µ
Pkg Qty	1	Collapse Pressure (bar)	20 bar
Seals	NBR: Nitrile	Media Type	Microglass
Efficiency βx(C) ≥ 1000	12 µ	Media	10 Micron Absolute
Parker Group	Filtration	Parker Division	Hydraulic Filter
Series	ParFit	Seals	NBR: Nitrile
Efficiency βx(C) ≥ 200	9 µ	Efficiency βx(C) ≥ 1000	12 µ
Collapse Pressure (bar)	20 bar	Collapse Pressure (psi)	290 psi
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Top Endcap Material	Steel zinc plated
Bottom Endcap Material	Steel zinc plated	Glue Side Seam Adhesive	Epoxy
Glue Endcaps Adhesive	Epoxy	Media	10 Micron Absolute

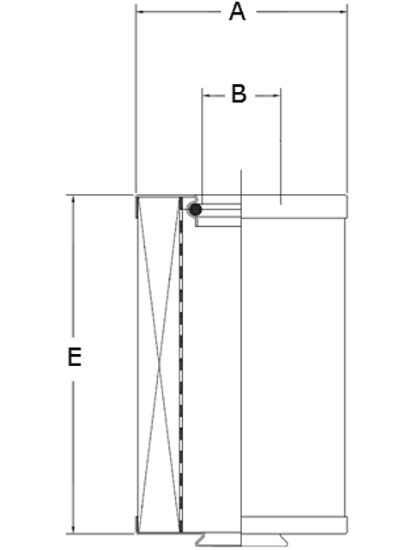

Media Type	Microglass	D Dimension	1.307 in (33.2 mm)
Inner Support Cylinder Material	Steel nickel plated	Competitor	FBO
A Dimension	3.701 in (94 mm)	B Dimension	1.902 in (48.3 mm)
E Dimension	0.094 in (2.4 mm)
