934750Q - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 934750Q

$103.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	2 Micron Absolute
UOM	EA	Collapse Pressure (bar)	20.7 bar
Pkg Qty	1	Media Type	Microglass
Seals	EPR: Ethylene Propylene	Efficiency βx(C) ≥ 200	4 µ
Collapse Pressure (psi)	300 psi	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	ParFit
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Inner Support Cylinder Material	Steel tin plated
Glue Side Seam Adhesive	Epoxy	Glue Endcaps Adhesive	Epoxy
Media	2 Micron Absolute	Media Type	Microglass
Efficiency βx(C) ≥ 200	4 µ	Seals	EPR: Ethylene Propylene

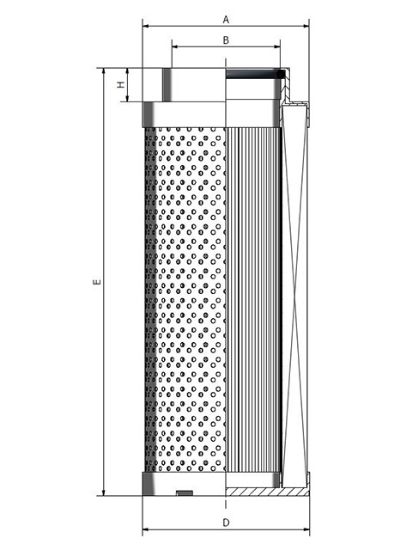

Top Endcap Material	Glass reinforced nylon	E Dimension	4.5 in (114.3 mm)
Collapse Pressure (bar)	20.7 bar	Collapse Pressure (psi)	300 psi
B Dimension	0.138 in (3.5 mm)	D Dimension	0.228 in (5.8 mm)
Bottom Endcap Material	Steel tin plated	A Dimension	0.228 in (5.8 mm)
I Dimension	0.449 in (11.4 mm)
