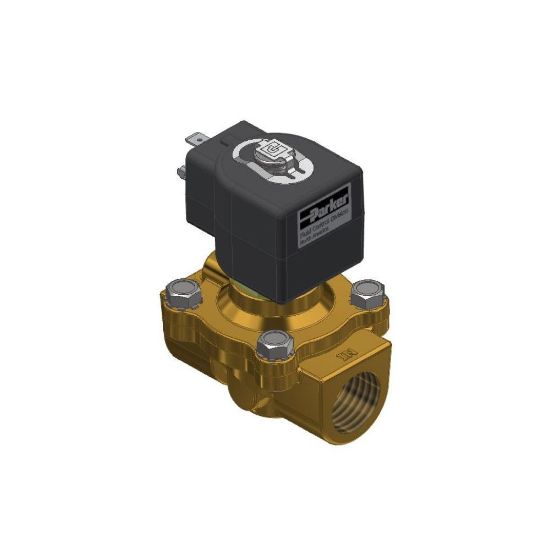

73218BN64N00N0D100C2 - Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 73218BN64N00N0D100C2

$529.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage (V)	24 VDC
Seal Material	NBR	Coil Type	DIN Form A
Power (Watts)	10 Watt (DC)	Flow Factor 1 (Cv)	13.5
Product Series	7000 Series	Flow Coefficient 1	13.5 Cv
Power Consumption	10 W (DC)	Maximum Fluid Temperature	185 °F
Minimum Fluid Temperature	0 °F	Body Material	Brass
Orifice 2 Size	n/a	Port Type	NPT
Actuation Type	Pilot	Maximum Pressure Differential	125 psi (DC)
Flow Coefficient 2	n/a	Division	Fluid Control Division
Coil Specifications Met	NEMA 4X	Number of Ports	2
Coil Type	DIN Form A	Valve Type	2-Way
Function	Normally Closed (NC)	Media	Liquids and Gases
Input Voltage	24.0 VDC	Orifice 1 Size	1 inch
Port Size	1 inch	Seal Material	NBR
Minimum Pressure Differential	5 psi

Product resources

Literature and Reference Materials

73218/73228 Installation, Operation & Maintenance Instructions (PDF)
