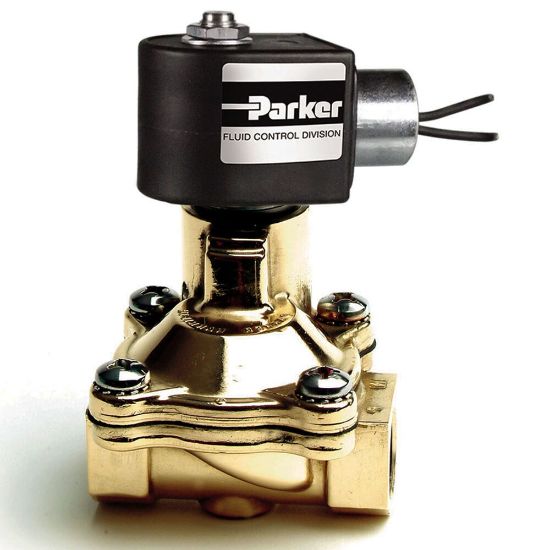

7321GBN64N00N0C111C2 - Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 7321GBN64N00N0C111C2

$432.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage (V)	24 VDC
Seal Material	NBR	Power (Watts)	10 Watt (DC)
Coil Type	1/2" NPT Conduit, 18" Leads	Flow Factor 1 (Cv)	11.7
Minimum Fluid Temperature	0 °F	Body Material	Brass
Orifice 2 Size	n/a	Port Type	NPT
Actuation Type	Pilot	Maximum Pressure Differential	230 psi (DC)
Flow Coefficient 2	n/a	Division	Fluid Control Division
Seal Material	NBR	Coil Specifications Met	NEMA 4X
Number of Ports	2	Minimum Pressure Differential	5 psi
Coil Type	1/2" NPT Conduit, 18" Leads	Valve Type	2-Way
Flow Coefficient 1	11.7 Cv	Input Voltage	24.0 VDC
Power Consumption	10 W (DC)	Port Size	1 inch
Orifice 1 Size	1 inch	Function	Normally Closed (NC)
Media	Liquids and Gases	Product Series	7000 Series
Maximum Fluid Temperature	185 °F
