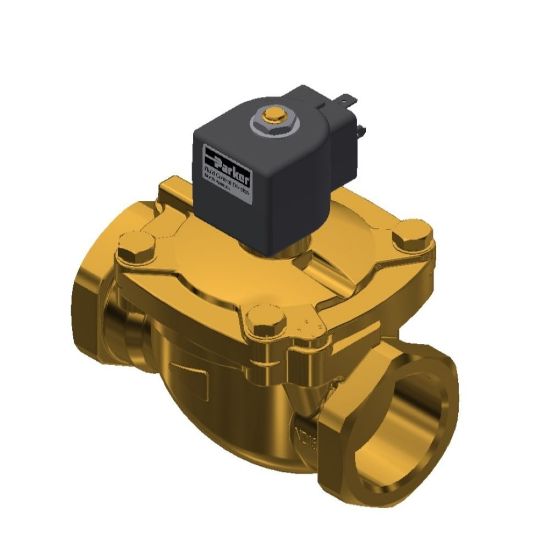

7321GBN99N00N0D100C2 - Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 2" NPT Solenoid Valves provide pressures up to 230 PSI and flow factors of 38.6 CV's. They have brass bodies, multiple mounting positions and Class F or H and NEMA 4X, 7 or 9 coils for general purpose flow applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	19 in stock

SKU 7321GBN99N00N0D100C2

$1,337.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	DIN Form A, Class F
Voltage (V)	24 VDC	Maximum Pressure Differential (psi)	200 psi (DC)
Power (Watts)	10 Watt (DC)	Body Material	Brass
Flow Coefficient 2	n/a	Minimum Fluid Temperature	0 °F
Minimum Pressure Differential	5 psi	Seal Material	NBR
Coil Specifications Met	NEMA 4X	Valve Type	2-Way
Number of Ports	2	Division	Fluid Control Division
Coil Type	DIN Form A, Class F	Power Consumption	10 W (DC)
Orifice 1 Size	1-9/16 inch	Maximum Fluid Temperature	185 °F
Input Voltage	24.0 VDC	Flow Coefficient 1	38.6 Cv
Port Size	2 inch	Function	Normally Closed (NC)
Media	Liquids and Gases	Actuation Type	Pilot
Maximum Pressure Differential	200 psi (DC)	Port Type	NPT
Product Series	7000 Series	Orifice 2 Size	n/a
