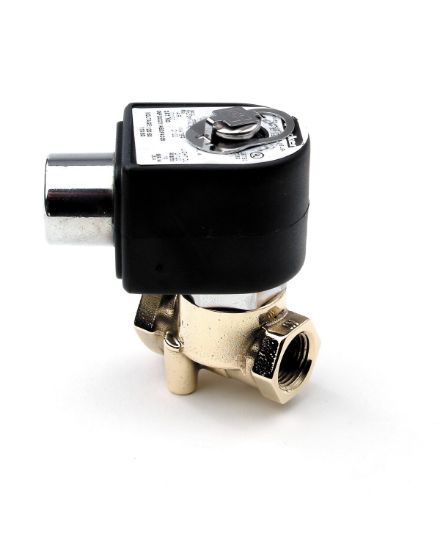

06F20C2118BDF4C01 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 06F20C2118BDF4C01

$206.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	24/60	Power (Watts)	16 Watt (AC)
Body Material	BRASS	Seal Material	NBR
Flow Factor 1 (Cv)	0.85	Orifice 1 Size (inch)	9/32
Maximum Pressure Differential (psi)	100 psi (AC)	Minimum Pressure Differential	0 psi
Seal Material	NBR	Orifice 1 Size	9/32 inch
Port Size	3/8 inch	Media	General Purpose for Air
Function	Normally Closed (NC)	Power Consumption	16 W (AC)
Maximum Fluid Temperature	200 °F	Input Voltage	24/60
Flow Coefficient 1	0.85 Cv	Actuation Type	Direct Acting
Product Series	Gold Ring Series	Orifice 2 Size	n/a
Maximum Pressure Differential	100 psi (AC)	Port Type	NPT
Flow Coefficient 2	n/a	Body Material	Brass
Minimum Fluid Temperature	0 °F	Valve Type	2-Way
Number of Ports	2	Division	Fluid Control Division
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Coil Specifications Met	Class F
