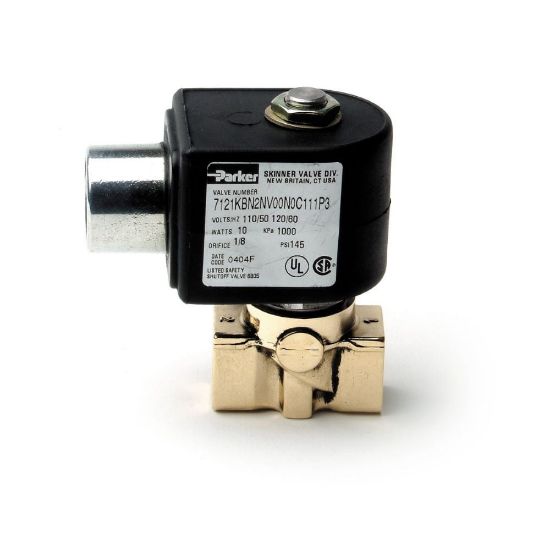

7121KBN3UV00N0C111P3 - Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 7121KBN3UV00N0C111P3

$191.34/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	110/50-120/60
Seal Material	FKM	Power (Watts)	10 Watt (AC)
Flow Factor 1 (Cv)	0.83	Orifice 1 Size (inch)	7/16
Maximum Pressure Differential (psi)	55 psi (AC)	Division	Fluid Control Division
Product Series	7000 Series	Media	General Purpose for Air
Port Size	3/8 inch	Port Type	NPT
Valve Type	2-Way	Input Voltage	110/50-120/60
Actuation Type	Direct Acting	Power Consumption	10 W (AC)
Body Material	Brass	Seal Material	FKM
Maximum Pressure Differential	55 psi (AC)	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Orifice 1 Size	7/16 inch
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 1	0.83 Cv	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Maximum Fluid Temperature	185 °F
Minimum Fluid Temperature	0 °F	Minimum Pressure Differential	0 psi

Product resources

Literature and Reference Materials

7121K/7122K Installation, Operation & Maintenance Instructions (PDF)
