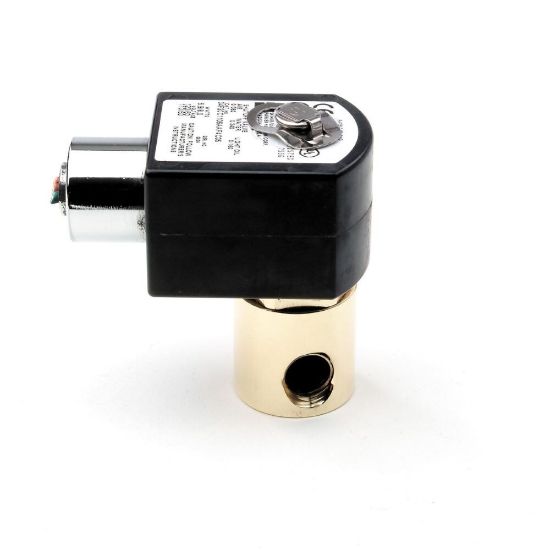

04F20O1106ACF4C05 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 04F20O1106ACF4C05

$231.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	11 Watt (AC)
Seal Material	NBR	Flow Factor 1 (Cv)	0.17
Orifice 1 Size (inch)	3/32	Maximum Pressure Differential (psi)	300 psi (AC)
Orifice 1 Size	3/32 inch	Power Consumption	11 W (AC)
Input Voltage	110/50-120/60	Flow Coefficient 1	0.17 Cv
Maximum Fluid Temperature	180 °F	Maximum Pressure Differential	300 psi (AC)
Port Type	NPT	Product Series	Gold Ring Series
Actuation Type	Direct Acting	Flow Coefficient 2	n/a
Body Material	Brass	Minimum Fluid Temperature	0 °F
Orifice 2 Size	n/a	Number of Ports	2
Valve Type	2-Way	Division	Fluid Control Division
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Minimum Pressure Differential	0 psi
Coil Specifications Met	Class F	Seal Material	NBR
Media	General Purpose for Air	Function	Normally Open (NO)
Port Size	1/4 inch
