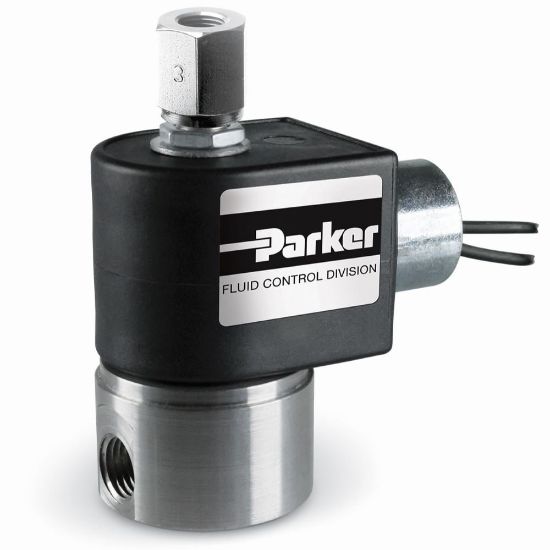

71335SN2ENJ1N0C111P3 - Parker 3-Way Multi-Purpose, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Multi-Purpose, 1/4" NPT Solenoid Valves provide operating pressures up to 400 psi and flow factors up to 0.31 CV's. They offer stainless steel or brass bodies and various coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 71335SN2ENJ1N0C111P3

$210.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Seal Material	NBR
Power (Watts)	10 Watt (AC)	Orifice Main (inch)	3/64
Mechanical Option	Exhaust Adapter Nut	Body Material	430F Stainless
Flow Factor Main (Cv)	0.052	Maximum Pressure Differential (psi)	180 psi (AC)
Input Voltage	110/50-120/60	Port Size	1/4 inch
Power Consumption	10 W (AC)	Main Flow Coefficient	0.052 Cv
Media	General Purpose for Air	Function	Multipurpose
Product Series	7000 Series	Exhaust Flow Coefficient	0.052 Cv
Main Orifice Size	3/64 inch	Maximum Fluid Temperature	185 °F
Minimum Fluid Temperature	0 °F	Exhaust Orifice Size	1/16 inch
Body Material	Stainless Steel 430 F	Port Type	NPT
Orifice 2 Size	n/a	Flow Coefficient 2	n/a
Actuation Type	Direct Acting	Maximum Pressure Differential	180 psi (AC)
Coil Specifications Met	NEMA 4X	Division	Fluid Control Division
Seal Material	NBR	Minimum Pressure Differential	0 psi
Number of Ports	3	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	3-Way	Additional Options	Exhaust Adapter Nut
