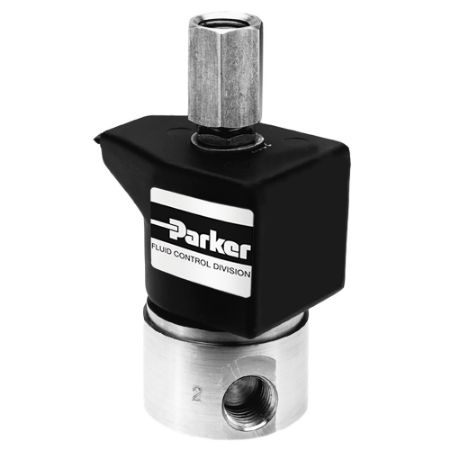

Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Normally Closed, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Coil Type | Voltage (V) | Seal Material | Mechanical Option | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) | Maximum Pressure Differential (psi) | Maximum Fluid Temperature | Power Consumption | Input Voltage | Function | Port Size | Media | Orifice 2 Size | Maximum Pressure Differential | Actuation Type | Product Series | Port Type | Exhaust Flow Coefficient | Main Orifice Size | Exhaust Orifice Size | Additional Options | Body Material | Minimum Fluid Temperature | Flow Coefficient 2 | Minimum Pressure Differential | Coil Specifications Met | Main Flow Coefficient | Seal Material | Coil Type | Valve Type | Number of Ports | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71315SN2EN00N0C111P3 | Backordered | Backordered | $196.70/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 250 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 3/64 inch | 1/16 inch | No Option | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.062 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2ENJ1N0C111C1 | Backordered | Backordered | $207.86/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | 185 °F | 10 W (DC) | 12.0 VDC | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 250 psi (DC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 3/64 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.062 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2ENJ1N0C111C2 | Backordered | Backordered | $209.57/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | 185 °F | 10 W (DC) | 24.0 VDC | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 250 psi (DC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 3/64 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.062 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2ENJ1N0H111P3 | 2 Limited Stock | 1 Limited Stock | $290.61/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 250 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 3/64 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 9 | 0.062 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GN00N0C111P3 | Backordered | Backordered | $196.70/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 200 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | No Option | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GN00N0H111P3 | Backordered | Backordered | $278.66/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 200 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | No Option | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 7 | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GNJ1N0C111C1 | Backordered | Backordered | $209.74/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | 185 °F | 10 W (DC) | 12.0 VDC | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 200 psi (DC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GNJ1N0C111P3 | Backordered | Backordered | $210.10/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 200 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GNJ1N0H111C2 | Backordered | 10 in stock | $377.49/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | 185 °F | 10 W (DC) | 24.0 VDC | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 200 psi (DC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 7 | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2GNJ1N0H111P3 | 3 in stock | 9 in stock | $290.61/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 200 psi (AC) | Direct Acting | 7000 Series | NPT | 0.095 Cv | 1/16 inch | 1/16 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 9 | 0.11 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KNJ1N0C111C2 | Backordered | 5 in stock | $272.46/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | 185 °F | 10 W (DC) | 24.0 VDC | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 125 psi (DC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.17 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KNJ1N0C111P3 | Backordered | 7 in stock | $270.67/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 125 psi (AC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.17 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KNJ1N0H111C2 | Backordered | 8 in stock | $377.31/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | 185 °F | 10 W (DC) | 24.0 VDC | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 125 psi (DC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 9 | 0.17 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KNM5N0C111C1 | Backordered | Backordered | $258.53/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | NBR | Manual Override w/Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | 185 °F | 10 W (DC) | 12.0 VDC | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 125 psi (DC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Manual Override with Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.17 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KVJ1N0C111P3 | Backordered | Backordered | $222.49/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | FKM | Exhaust Adapter Nut | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 125 psi (AC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.17 Cv | FKM | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2KVJ1N0H111C2 | Backordered | Backordered | $302.26/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | FKM | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | 185 °F | 10 W (DC) | 24.0 VDC | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 125 psi (DC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 3/32 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 7 | 0.17 Cv | FKM | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division | |
| 71315SN2MN00N0C111P3 | Backordered | Backordered | $197.12/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/8 | 0.23 | 90 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | Liquids and Gases | n/a | 90 psi (AC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 1/8 inch | 3/32 inch | No Option | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.23 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2MNJ1N0C111P3 | Backordered | Backordered | $210.62/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/8 | 0.23 | 90 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 90 psi (AC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 1/8 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 4X | 0.23 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3-Way | 3 | Fluid Control Division | |
| 71315SN2MNJ1N0H111P3 | Backordered | Backordered | $290.87/each | EA | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/8 | 0.23 | 90 psi (AC) | 185 °F | 10 W (AC) | 110/50-120/60 | Normally Closed (NC) | 1/4 inch | General Purpose for Air | n/a | 90 psi (AC) | Direct Acting | 7000 Series | NPT | 0.17 Cv | 1/8 inch | 3/32 inch | Exhaust Adapter Nut | Stainless Steel | 0 °F | n/a | 0 psi | NEMA 7 | 0.23 Cv | NBR | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 3-Way | 3 | Fluid Control Division |
