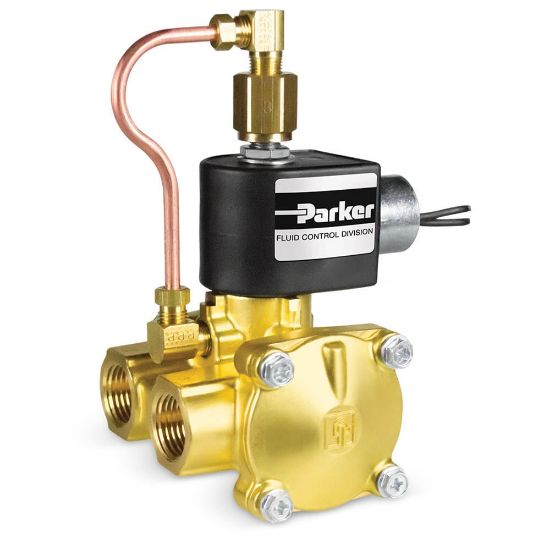

73312BN3RNJ1N0C111P3 - Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 73312BN3RNJ1N0C111P3

$669.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	10 Watt (AC)
Mechanical Option	Exhaust Adapter Nut	Maximum Pressure Differential (psi)	180 psi (AC)
Body Material	Brass	Minimum Fluid Temperature	0 °F
Flow Coefficient 2	n/a	Orifice 2 Size	n/a
Maximum Pressure Differential	180 psi (AC)	Actuation Type	Mechanical
Product Series	7000 Series	Port Type	NPT
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	3-Way
Number of Ports	3	Division	Fluid Control Division
Exhaust Orifice Size	n/a	Additional Options	Exhaust Adapter Nut
Function	Normally Closed (NC)	Port Size	3/8 inch
Media	Liquids and Gases	Minimum Pressure Differential	10 psi
Coil Specifications Met	NEMA 4X	Main Flow Coefficient	2.1 Cv
Seal Material	NBR	Exhaust Flow Coefficient	n/a
Main Orifice Size	3/8 inch	Power Consumption	10 W (AC)
Maximum Fluid Temperature	185 °F	Input Voltage	110/50-120/60

Product resources

Literature and Reference Materials

73312/73322/73382 Installation, Operation & Maintenance Instructions (PDF)
