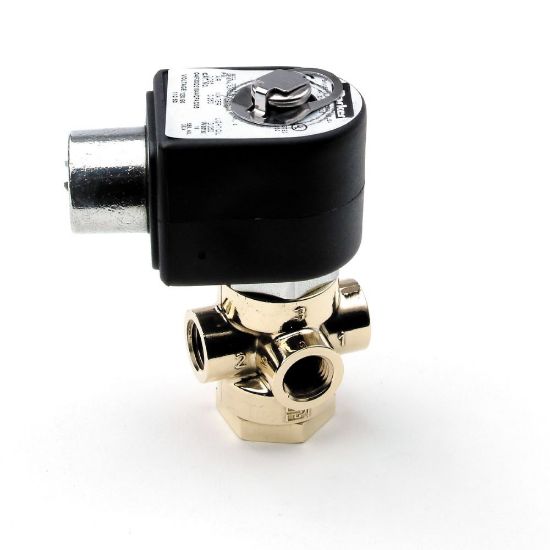

04F30O2104ADF4C05 - Parker 3-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 235 psi (AC) and flow factors up to 0.25 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 04F30O2104ADF4C05

$194.09/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	16 Watt (AC)
Maximum Pressure Differential (psi)	235 psi (AC)	Orifice Main (inch)	1/16
Flow Factor Main (Cv)	0.09	Body Material	Brass
Exhaust Orifice Size	1/16 inch	Additional Options	n/a
Number of Ports	3	Valve Type	3-Way
Division	Fluid Control Division	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Minimum Pressure Differential	0 psi	Seal Material	NBR
Coil Specifications Met	Class F	Media	General Purpose for Air
Function	Normally Open (NO)	Main Flow Coefficient	0.09 Cv
Power Consumption	16 W (AC)	Port Size	1/4 inch
Input Voltage	110/50-120/60	Exhaust Flow Coefficient	0.09 Cv
Maximum Fluid Temperature	200 °F	Main Orifice Size	1/16 inch
Port Type	NPT	Product Series	Gold Ring Series
Flow Coefficient 2	n/a	Actuation Type	Direct Acting
Maximum Pressure Differential	235 psi (AC)	Orifice 2 Size	n/a
Minimum Fluid Temperature	0 °F
