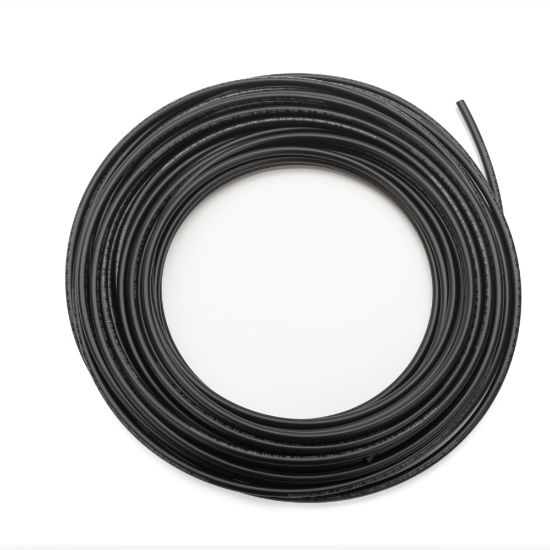

E-6X1-0100 - PE Tubing

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	1277 in stock

SKU E-6X1-0100

$0.59/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Product Type	Metric, Instr. Grade
Standard Pack Qty (ft)	100	Color	Natural
Nominal Outside Diameter	6 mm	Length per Package	30 m
Maximum Operating Temperature	150 °F	Size	6 mm
Compatible Fitting	Prestomatic	Division	Parflex Division
Maximum Operating Pressure	0.86 MPa	Cover Color	n/a
Weight	0.019 kg/m	Minimum Bend Radius	25 mm
Tube Outside Diameter	0.236 inch	Cover Material	n/a
Minimum Operating Temperature	-62 °C	Application	Chemicals
Specifications Met	ASTM D1693	Minimum Burst Pressure	500 psi
Media	Air	Product Type	Metric
Tube Material	Polyethylene (PE)	Color	Natural
Tube Inside Diameter	0.157 inch
