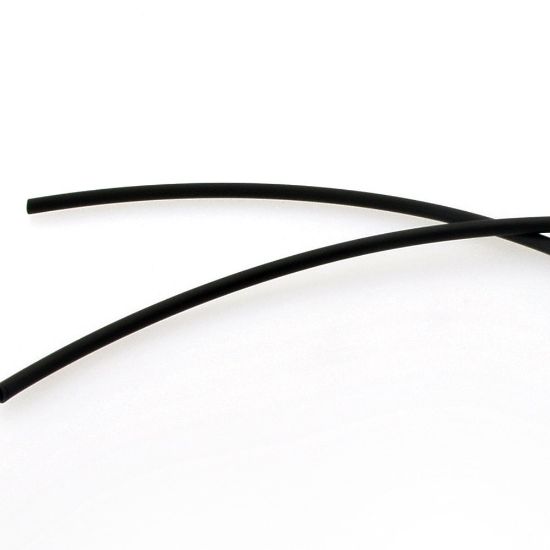

PEFR-6-0500 - PE Tubing - Flame Resistant

Spark resistant PEFR Series PE Tubing is flame resistant (UL 94 V-2) and excellent for pneumatic controls in HVAC applications. Resistant to stress cracking exceeds that of ordinary polyethylene tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU PEFR-6-0500

$0.61/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	3/8
Standard Pack Qty (ft)	500	Length per Package	152 m
Division	Parflex Division	Application	Fluid Handling
Specifications Met	UL 94 V-2	Minimum Burst Pressure	4.28 MPa
Weight	0.29 lb/ft	Maximum Operating Pressure	10.7 bar
Tube Inside Diameter	0.250 inch	Cover Material	n/a
Color	Black	Tube Outside Diameter	3/8 inch
Minimum Bend Radius	36.1 mm	Minimum Operating Temperature	-85 °F
Size	-6	Maximum Operating Temperature	66 °C
Compatible Fitting	Fast & Tite®	Tube Material	Polyethylene (PE) (Flame Resistant)
Media	Air	Material	Polyethylene (Flame Resistant )
Wall Thickness	0.062 Inch 1.6 MM	Outside Diameter	3/8 Inch 9.5 MM
Min. Bend Radius	1 1/2 Inch 36.1 MM	Max. Operating Pressure	1.7 MPa 10.7 Bar 155 psi
Min. Burst Pressure	620 psi 42.8 Bar 4.28 MPa	Min. Operating Temperature	-65 °C -85 °F
Weight	0.29 LB/ft	Media	Air
Size	-6	Max. Operating Temperature	66 °C 150 °F
Length	152 M 500 ft	Inside Diameter	0.250 Inch 60.4 MM
Color	Black	Parker Group	Fluid Connector
Parker Division	Tubing
