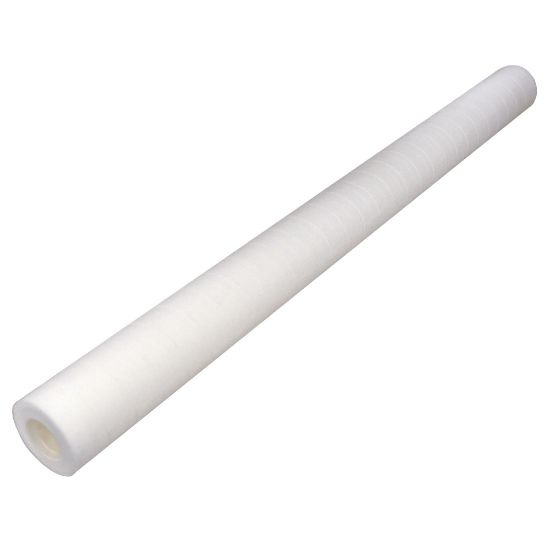

44571 - PEACH-PURE™ P90 & PPL Liquid Filter Cartridge

PEACH-Pure™ Series P90 & PPL advanced PEACH® technology depth style filter cartridge for deformable and shear sensitive contaminant removal used in a variety of liquid filtration applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 44571

$47.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	pH Range	3-9
Core Material	Polyester	End Cap Configuration	DOE - Double Open End
Nominal Outside Diameter	2.5"	Seal Material	Buna-N
Body Material	N/A	Micron Rating	40.0
Nominal Inside Diameter	1"	Product Series	P90G
Filter Material	High Grade Polyester	End Cap Material	High Grade Polyester
Maximum Operating Temperature	260 F	Model Number	ELMT P90G-229.75-A- 40B
Cartridge Length	29.75"	Division	Industrial Process Filtration Division
Brand	PECO	Division	Industrial Process Filtration Division
Technology	Filtration	Application	Liquid Particulate Filtration
Product Type	Filter Cartridge	Industry	Oil and Gas
Flow Direction	Outside-to-Inside	Quantity per Box	20
Filter Construction	PEACH Depth	Changeout Pressure Differential	20 to 30 psid
Maximum Pressure Differential	50 psid

Product resources

Literature and Reference Materials

PEACH-PURE P90 & PPL Liquid Filter Cartridge (PDF)
