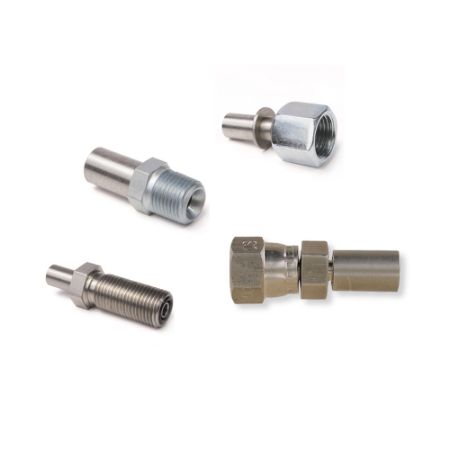

Permanent Crimp Fittings - SF Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's SF Series fittings are crimp style permanent fittings qualified for use with the Parker 56DH/568DH Diagnostic Hose. These compact fittings are used in hydraulic and pneumatic systems where a small O.D. hose is necessary. They are available in straight and 90° elbow shapes to accommodate different application requirements.
Markets:
• Industrial
• Agriculture
• Construction
• Mobile Equipment
• Transportation
Features/Benefits:
• Available in straight and 90° elbow shapes to accommodate different application requirements
• Parkalign® dies
Applications:
• Hydraulic and pneumatic systems where a small O.D. hose is necessary
• Hydraulic diagnostic hoses
Read More...Markets:
• Industrial
• Agriculture
• Construction
• Mobile Equipment
• Transportation
Features/Benefits:
• Available in straight and 90° elbow shapes to accommodate different application requirements
• Parkalign® dies
Applications:
• Hydraulic and pneumatic systems where a small O.D. hose is necessary
• Hydraulic diagnostic hoses
| Action | SKU | Availability | Partner Available | Price | UOM | Product Style | Port Connection | Hose I.D. (inch) | Length | Product Style | Materials of Construction | Dimensional Weight | Shape | Division | Connection Type | Disclaimer | Port Size | Connection Size | Hose Inside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101SF-2-1 | Backordered | Backordered | $76.55/each | EA | Male NPTF Pipe - Rigid - Straight | 1/8" | 0.09" | 1.13 inch | Male NPTF Pipe - Rigid - Straight | Steel | 0.0119 lb | Straight | Parflex Division | Pipe | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | 1/8 inch | 1/8"-27 inch Thread | 0.09 inch | |
| 1JBSF-4-1 | Backordered | Backordered | $51.68/each | EA | Male Seal-Lok® - Bulkhead without Locknut - Straight (with O-Ring) | 1/4" | 0.09" | 2.06 | Male Seal-Lok - Bulkhead Without Locknut - Straight (with o-ring) | Steel | 0.0267 | Straight | Parflex Division | Seal-Lok | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u | 1/4 | UNF | 0.09 |
