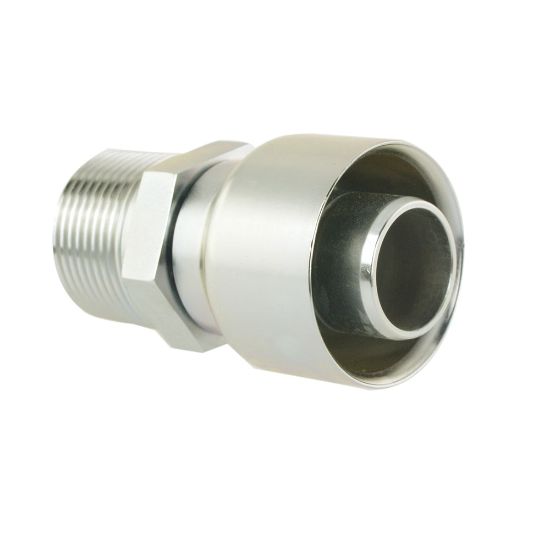

10193N-8-8C - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 10193N-8-8C

$140.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Male NPTF Pipe - Rigid
Hose I.D. (inch)	0.5"	Length (inch)	2.09"
Connection 2 Size	1/2"-14	Connection 1 Type	Hose
Body Material	Stainless Steel	Fitting Length	2.09 inch (see drawing legend A)
Maximum Operating Pressure	103.0 bar	Division	Parflex Division
Shape	Straight	Industry	Semiconductor
For Fluid Type	Water	Division	Parflex Division
Connection Length	38 mm	Connection 2 Size	1/2"-14 inch Thread
Coating	None	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Connection 1 Size	3/4 inch Hose I.D.	Hex Size	7/8 inch (see drawing legend H)
Hex Size 1	n/a	Specifications Met	n/a
Brand	Parker	Application	Fluid Control
Product Series	93N	Configuration	Hose to Port
