*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

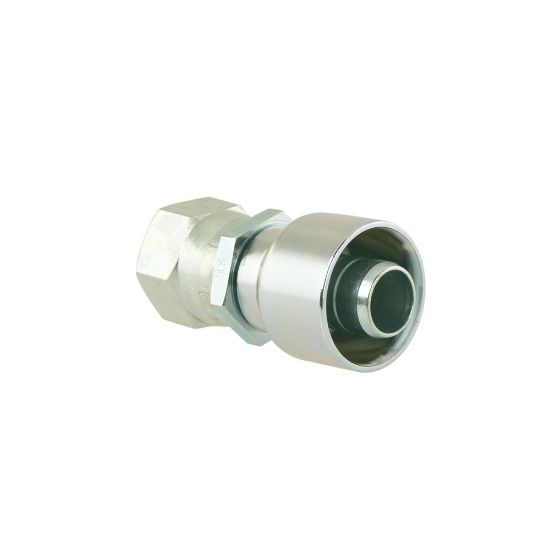

10693N-20-20C - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	5 in stock

SKU 10693N-20-20C

$728.35/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	3.28"
Product Style	Female JIC 37° Swivel	Hose I.D. (inch)	1.25"
Connection 2 Size	1-5/8"-12	Connection 2 Type	Female
Hex Size 1	2 inch (see drawing legend J)	Specifications Met	n/a
Brand	Parker	Application	Instrumentation
Product Series	93N	Connection 1 Type	Hose
Maximum Operating Pressure	1500 psi (Dependent on hose)	Configuration	Hose to Port
Body Material	Stainless Steel	Division	Parflex Division
Shape	Straight	Fitting Length	3.28 inch (see drawing legend A)
For Fluid Type	Hydraulic Fluids	Industry	Food & Beverage
Division	Parflex Division	Connection Length	51 mm
Connection 2 Size	1-5/8"-12 inch Thread	Coating	None
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
Hex Size	1-3/4 inch (see drawing legend H)	Connection 1 Size	3/4 inch Hose I.D.
