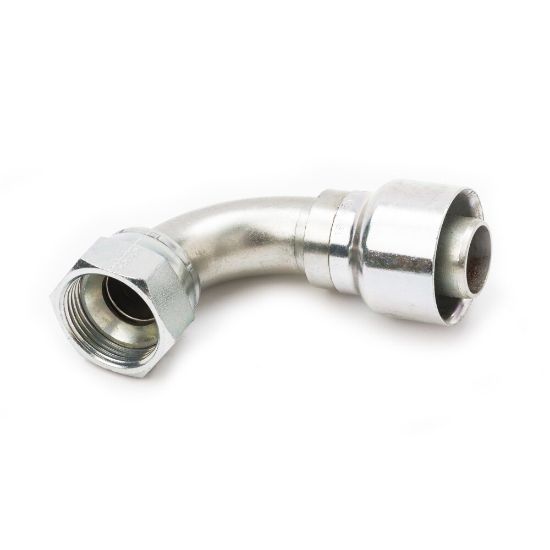

13993N-16-16 - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 13993N-16-16

$202.87/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1"
Connection 2 Size	1-5/16"-12	Product Style	Female JIC 37° Swivel
Length (inch)	3.71"	Hex Size	1-1/2 inch (see drawing legend J)
Connection 1 Size	-16 (Size)	Drop Length	54 mm
Connection 2 Type	JIC 37°	Technology	Fluid & Gas Handling
Product Type	Hose Fittings	Dimensional Weight	0.1108 lb
Configuration	Hose to Port	Product Series	93N
Application	Laboratory	Brand	Parker
Specifications Met	n/a	Hex Size 1	n/a
Fitting Length	94.2 mm	Division	Parflex Division
Shape	Elbow 90° Short Drop	Maximum Operating Pressure	10.3 MPa
Body Material	Steel	Connection 1 Type	Hose
Connection 2 Size	1-5/16"-12 inch Thread	Coating	Chromium 6 Free-plated
Connection Length	2-1/2 inch Cut-off allowance (see drawing legend B)	Division	Parflex Division
Industry	Food & Beverage	For Fluid Type	Water
