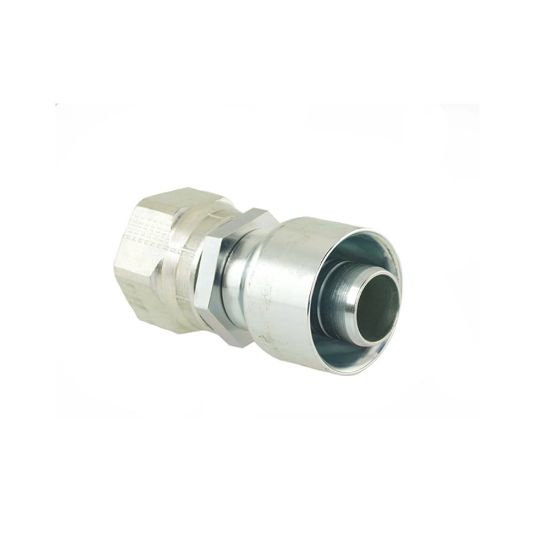

1JC93N-16-16 - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 1JC93N-16-16

$162.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1"
Product Style	Female Seal-Lok - Swivel	Connection 2 Size	1-7/16"-12
Length (inch)	2.61"	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Fluid Control
Product Type	Hose Fittings	Product Series	93N
Maximum Operating Pressure	1500 psi (Dependent on hose)	Body Material	Steel
Specifications Met	n/a	Shape	Straight Short
Configuration	Hose to Port	For Fluid Type	Steam
Connection 1 Size	-16 (Size)	Connection 1 Type	Hose
Connection 2 Size	1-7/16"-12 inch Thread	Connection 2 Type	Female
Hex Size	1-1/2 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	1-5/8 inch (see drawing legend J)	Fitting Length	66.2 mm
Connection Length	n/a
