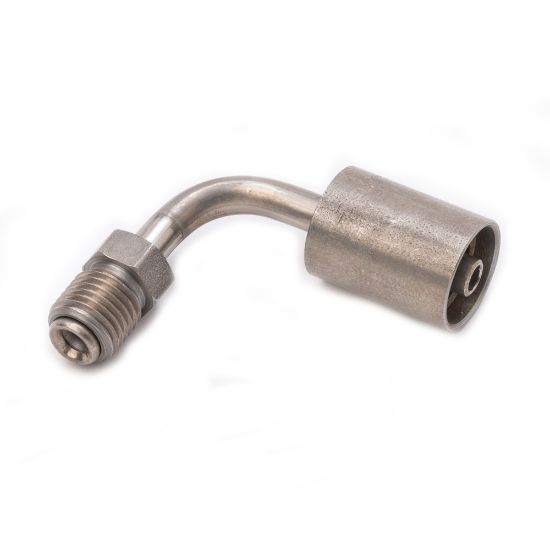

16992-3-3C - Permanent Fittings for Marine Power Tilt Hose – 92 Series

Parker's 92 Series fittings are assembled onto PTH Marine Power Tilt Hose. The series is available in stainless steel construction only.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	10 in stock

SKU 16992-3-3C

$54.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.125"
Product Style	Male Inverted SAE 45° - Swivel - 90° Elbow	Division	Parflex Division
For Fluid Type	Water (Salt Water)	Connection 1 Size	1/8 inch Hose I.D.
Length	37 mm	Technology	Fluid & Gas Handling
Connection Size	3/8"-24 inch Thread	Product Type	Fitting
Dimensional Weight	0.0243 lb	Product Series	92
Materials of Construction	Stainless Steel	Product Style	Male Inverted SAE 45° - Swivel - 90° Elbow
Brand	Parker	Application	Marine
Hex Size 1	3/8 inch	Fitting Type	Crimp
Industry	Marine	Division	Parflex Division
Shape	Elbow 90°	Body Material	Stainless Steel
Connection 1 Type	SAE
