1GKCY-2-2 - Permanent Fittings for Parflex Hose – CY Series

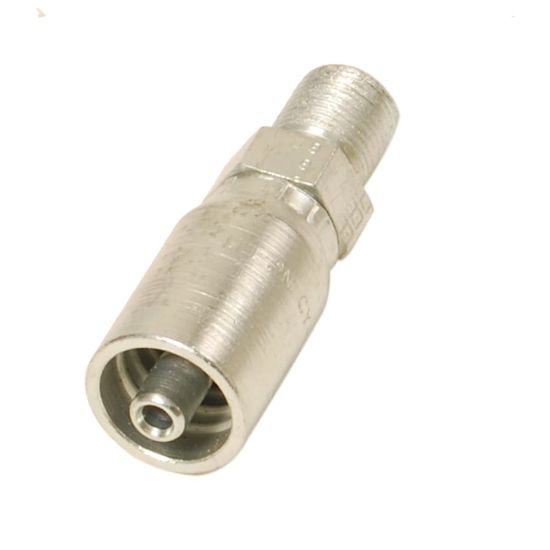

Name: 1GKCY-2-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1GKCY-2-2
Price: 11.89 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Manufacturer: Parker

Availability:

166 in stock

COLUMBIA, MO	154
Wichita, KS	6
TOPEKA, KS	6

Partner Available:

1186 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1GKCY-2-2

$11.89/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Hose I.D. (inch)	0.125"
Product Style	Bulkhead W/Zerk Port Integrated	Length (inch)	1.45"
Connection 2 Size	1/8"-27 NPSM Male with 1/4"-28 UNF Female	Connection 2 Type	Grease Zerk Bulkhead w/Integrated Zerk
Hex Size	0.5 inch (see drawing legend H)	Hex Size 1	n/a
Connection 1 Size	1/8 inch Hose I.D.	Product Type	Hose Fittings
Connection 1 Type	Hose	Configuration	Zerk Bulkhead to Hose
Brand	Parker	Application	Industrial Hydraulics
Specifications Met	n/a	Division	Parflex Division
Industry	Off-road Machinery	Fitting Length	36.83 mm
Shape	Straight	Body Material	Steel
Maximum Operating Pressure	414 bar	Technology	Fluid & Gas Handling
Connection Length	7/8 inch Cut-off allowance	Coating	Chromium 6 Free-plated
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
Connection 2 Size	1/8"-27 inch Thread, Male NPSM with 1/4"-28 Female UNF
