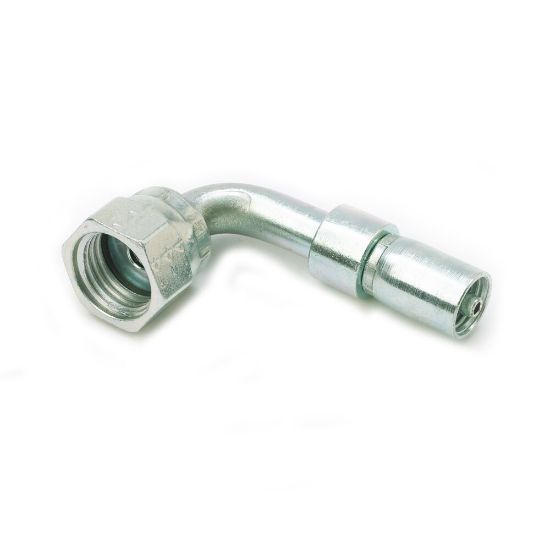

1J9CY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	47 in stock

SKU 1J9CY-4-2

$101.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Hose I.D. (inch)	0.125"	Shape	Elbow 90° - Short Drop
Length (inch)	1.81"	Product Style	Female Seal-Lok - Swivel - Short Drop
Connection 2 Size	9/16"-18 UNF	Configuration	Hose to Port
Application	Agriculture Equipment	Hex Size 1	0.6875 inch (see drawing legend J)
Brand	Parker	Specifications Met	n/a
Shape	Elbow 90° Short Drop	Division	Parflex Division
Industry	Transportation	Fitting Length	1.81 inch
Body Material	Steel	Connection 1 Type	Hose
Maximum Operating Pressure	41.4 MPa	Connection Length	32 mm
Coating	Chromium 6 Free-plated	For Fluid Type	Hydraulic Fluids
Division	Parflex Division	Connection 2 Size	9/16"-18 inch
Connection 2 Type	UNF Thread	Hex Size	n/a
Connection 1 Size	1/8 inch Hose I.D.	Product Type	Hose Fittings
Technology	Fluid & Gas Handling
