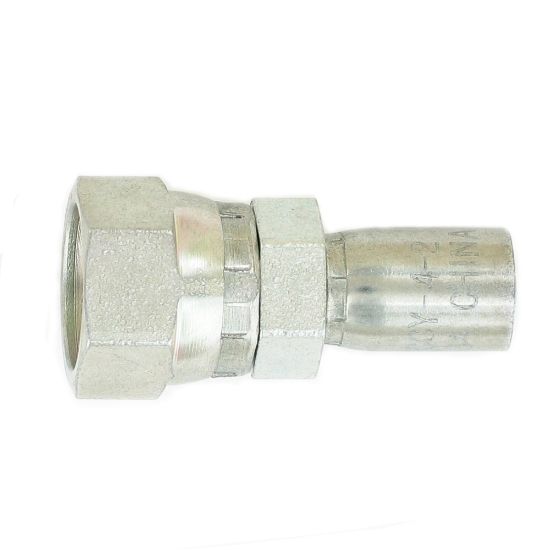

1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Name: 1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1JCCY-4-2
Price: 30.36 USD
Availability: LimitedAvailability

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Manufacturer: Parker

Availability:

3 in stock

Wichita, KS	2
Olivette, MO	1

Partner Available:

73 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1JCCY-4-2

$30.36/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Product Style	Female Seal-Lok - Swivel - Straight - Short
Hose I.D. (inch)	0.125"	Connection 2 Size	9/16"-18 UNF
Length (inch)	1.29"	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Fluid Control
Product Type	Hose Fittings	Maximum Operating Pressure	6000 psi
Body Material	Steel	Specifications Met	n/a
Industry	Industrial Manufacturing Equipment	Shape	Straight Short
Configuration	Hose to Port	For Fluid Type	Water
Connection 1 Size	1/8 inch	Connection 1 Type	Hose
Connection 2 Size	9/16"-18 inch	Connection 2 Type	Seal-Lok® Swivel
Hex Size	0.5625 inch (see drawing legend H)	Coating	Chromium 6 Free-plated
Hex Size 1	0.6875 inch (see drawing legend J)	Fitting Length	1.29 inch
Connection Length	3/4 inch Cut-off allowance
