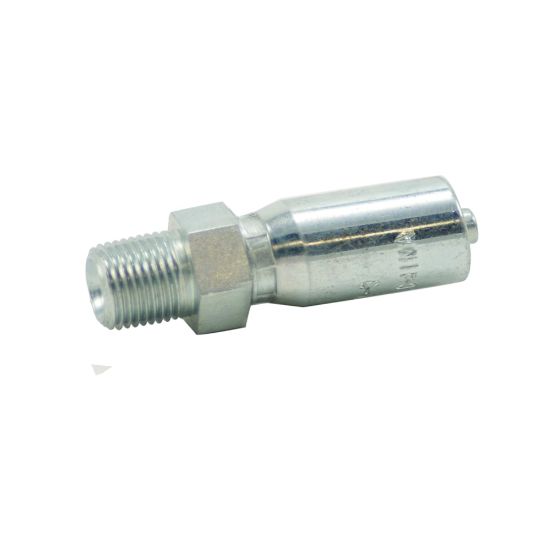

1LMCY-2-2 - Permanent Fittings for Parflex Hose – CY Series

Name: 1LMCY-2-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1LMCY-2-2
Price: 69.54 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Manufacturer: Parker

Availability:

10 in stock

Wichita, KS	9
Olivette, MO	1

Partner Available:

16 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1LMCY-2-2

$69.54/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Hose I.D. (inch)	0.125"
Connection 2 Size	1/4"-28	Product Style	Male Grease
Length (inch)	1.26"	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Connection Length	17 mm
Coating	Chromium 6 Free-plated	Application	Diagnostics
Brand	Parker	Specifications Met	n/a
Connection 2 Type	Male	Hex Size 1	n/a
Connection 1 Size	1/8 inch Hose I.D.	Hex Size	0.375 inch (see drawing legend H)
Body Material	Steel	Shape	Straight
Connection 1 Type	Hose	Maximum Operating Pressure	41.4 MPa
Fitting Length	1.26 inch	Configuration	Hose to Port
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
Connection 2 Size	1/4"-28 inch Thread	Division	Parflex Division
Industry	Off-road Machinery
