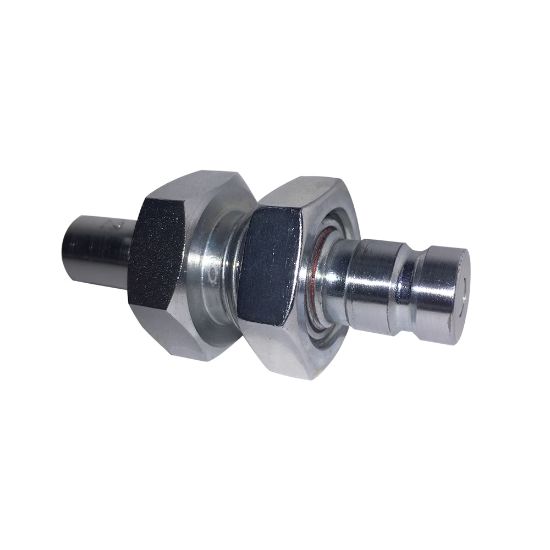

1PDCY-2-2 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1 Limited Stock

SKU 1PDCY-2-2

$49.84/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Body Material	Steel	Hose I.D. (inch)	0.125"
Length (inch)	2.42"	Product Style	Bulkhead Diagnostic Nipple
Connection 2 Size	3/14"-16 UNF	Connection Length	1-7/8 inch Cut-off allowance
Connection 2 Size	3/14"-16 inch	Coating	Chromium 6 Free-plated
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
Industry	Off-road Machinery	Connection 2 Type	UNF Thread
Hex Size	1.0 inch (see drawing legend H)	Connection 1 Size	1/8 inch Hose I.D.
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
Application	Fluid Control	Configuration	Hose to Port
Hex Size 1	n/a	Brand	Parker
Specifications Met	n/a	Division	Parflex Division
Shape	Straight	Body Material	Steel
Connection 1 Type	Hose	Maximum Operating Pressure	414 bar
Fitting Length	61.47 mm
