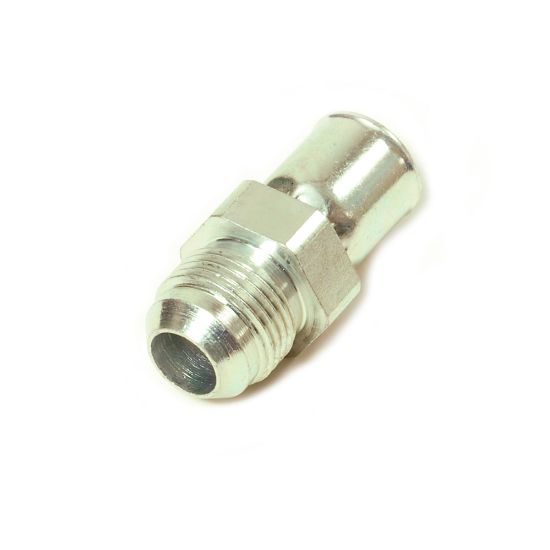

10391N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: 10391N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 10391N-10-10
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

20 in stock

Olivette, MO

Partner Available:

3 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10391N-10-10

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.5"
Product Style	Male JIC 37° - Rigid - Straight	Connection 2 Size	7/8"-14
Length (inch)	2.07"	Application	Ultra High Purity
Product Series	91N	Specifications Met	n/a
Tube Outside Diameter	n/a	Brand	Parker
Connection 1 Type	Hose	Maximum Operating Pressure	20.7 MPa
Configuration	Hose to Port	Body Material	Steel (Shell)
Division	Parflex Division	Shape	Straight
Fitting Length	53 mm	Industry	Transportation
For Fluid Type	Steam	Connection 2 Size	7/8"-14 inch Thread
Coating	Chromium 6 Free-plated	Division	Parflex Division
Connection Length	35 mm	Technology	Fluid & Gas Handling
Product Type	Hose Fittings	Hex Size 1	n/a
Connection 2 Type	Rigid	Hex Size	1 inch (see drawing legend J)
Connection 1 Size	1/2 inch Hose I.D.
