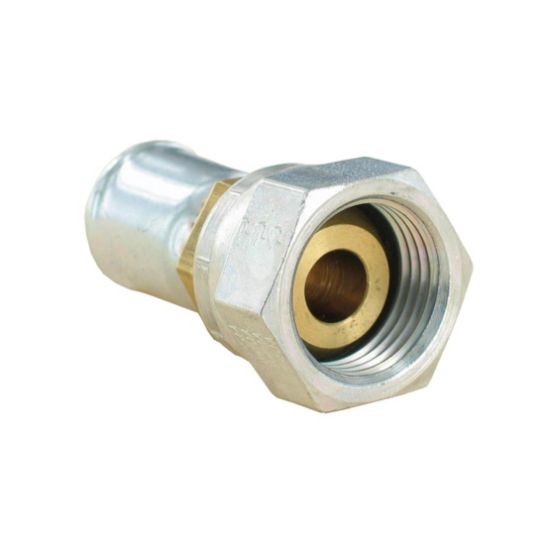

10791N-4-4 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	90 in stock

SKU 10791N-4-4

$68.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.188"
Connection 2 Size	1/4"-18	Length (inch)	1.5"
Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)	Application	Fluid Control
Brand	Parker	Tube Outside Diameter	n/a
Specifications Met	n/a	Connection 1 Type	Hose
Configuration	Hose to Port	Dimensional Weight	0.0106 lb
Product Series	91N	Body Material	Steel (Nut and Shell)
Shape	Straight	Maximum Operating Pressure	207 bar
Fitting Length	39 mm	Division	Parflex Division
Industry	Food & Beverage	For Fluid Type	Chemicals
Division	Parflex Division	Coating	Chromium 6 Free-plated
Connection 2 Size	1/4"-18 inch Thread	Connection Length	25 mm
Technology	Fluid & Gas Handling	Product Type	Hose Fittings
Hex Size 1	11/16 inch (see drawing legend H)	Connection 2 Type	Female
Connection 1 Size	3/16 inch Hose I.D.	Hex Size	9/16 inch (see drawing legend J)
