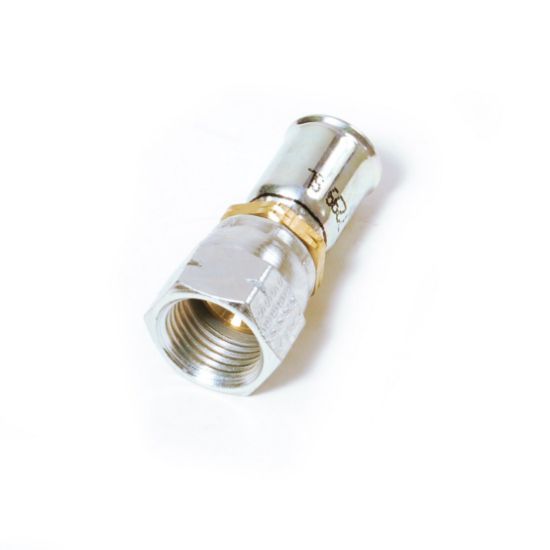

10891N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Name: 10891N-12-12 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 10891N-12-12
Price: 36.35 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

17 in stock

Kansas City, KS	6
COLUMBIA, MO	4
TOPEKA, KS	4
Springfield, MO	2
Wichita, KS	1

Partner Available:

245 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10891N-12-12

$36.35/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.625"
Length (inch)	2.15"	Connection 2 Size	1-1/16"-14
Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)	Hex Size 1	1-1/4 inch (see drawing legend H)
Connection 2 Type	45° Flare SAE Swivel	Connection 1 Size	5/8 inch Hose I.D.
Hex Size	1 inch (see drawing legend J)	Application	Tools & Equipment
Brand	Parker	Tube Outside Diameter	n/a
Specifications Met	n/a	Dimensional Weight	0.0548 lb
Configuration	Hose to Port	Product Series	91N
Body Material	Steel (Nut and Shell)	Connection 1 Type	Hose
Maximum Operating Pressure	3000 psi (Dependent on hose)	Fitting Length	55 mm
Division	Parflex Division	Shape	Straight
Industry	Semiconductor	For Fluid Type	Pharmaceutical Fluids
Division	Parflex Division	Connection 2 Size	1-1/16"-14 inch Thread
Connection Length	35 mm	Coating	Chromium 6 Free-plated
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
