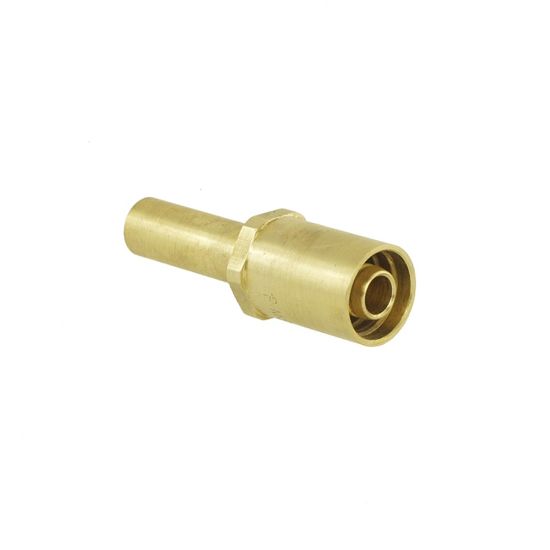

13491N-8-8 - Permanent Fittings for PTFE Hose - 91/91N

Name: 13491N-8-8 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 13491N-8-8
Price: 56.62 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

8 in stock

TOPEKA, KS	5
Springfield, MO	3

Partner Available:

38 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13491N-8-8

$56.62/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.5"
Connection 2 Size	1/2"	Length (inch)	2.8"
Product Style	Male Standpipe - Rigid - Straight (Inch Size Tube O.D.)	Connection 2 Type	Straight Tube
Hex Size	n/a	Connection 1 Size	1/2 inch Hose I.D.
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
Dimensional Weight	0.0522 lb	Product Series	91N
Configuration	Hose to Port	Application	Instrumentation
Hex Size 1	n/a	Specifications Met	n/a
Tube Outside Diameter	n/a	Brand	Parker
Division	Parflex Division	Shape	Straight
Industry	Transportation	Connection 1 Type	Hose
Body Material	Steel (Nut and Shell)	Fitting Length	2.80 inch (see drawing legend A)
Maximum Operating Pressure	20.7 MPa	Connection Length	54 mm
Connection 2 Size	1/2 inch Thread	Coating	Chromium 6 Free-plated
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
