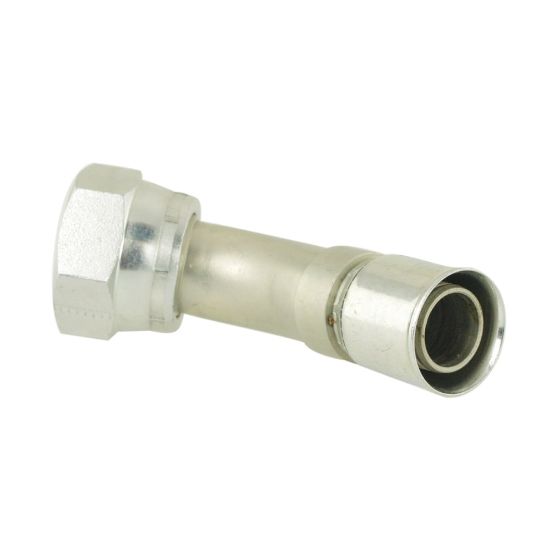

13991N-4-4 - Permanent Fittings for PTFE Hose - 91/91N

Name: 13991N-4-4 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 13991N-4-4
Price: 21.55 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

30 in stock

Olivette, MO	8
TOPEKA, KS	5
Kansas City, KS	4
Wichita, KS	3
Peoria, IL	3
Decatur, IL	3
Springfield, MO	2
Joplin, MO	2

Partner Available:

1153 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13991N-4-4

$21.55/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.188"
Connection 2 Size	7/16"-20	Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop
Length (inch)	1.62"	Hex Size 1	9/16 inch (see drawing legend H)
Connection 2 Type	Female	Connection 1 Size	4.8 mm
Hex Size	n/a	Product Type	Hose Fittings
Connection 1 Type	Hose	Dimensional Weight	0.0106 lb
Configuration	Hose to Port	Product Series	91N
Application	Semiconductor	Brand	Parker
Tube Outside Diameter	n/a	Specifications Met	n/a
Division	Parflex Division	Industry	Healthcare & Life Sciences
Shape	Elbow 90° Short Drop	Body Material	Steel
Maximum Operating Pressure	20.7 MPa	Fitting Length	1.62 inch (see drawing legend A)
Connection Length	1-1/16 inch Cut-off allowance (see drawing legend B)	Coating	Chromium 6 Free-plated
Technology	Fluid & Gas Handling	For Fluid Type	Hydraulic Fluids
Division	Parflex Division	Connection 2 Size	7/16"-20 inch Thread
