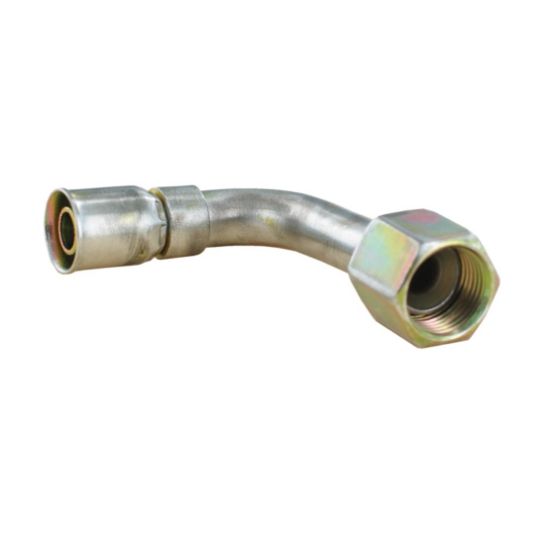

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

14191N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: 14191N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 14191N-10-10
Price: 67.51 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

4 in stock

Springfield, MO	3
Wichita, KS	1

Partner Available:

7 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 14191N-10-10

$67.51/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female JIC 37° - Swivel - 90° Elbow - Long Drop
Hose I.D. (inch)	0.5"	Length (inch)	2.34"
Connection 2 Size	7/8"-14	Division	Parflex Division
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Medical
Product Type	Hose Fittings	Product Series	91N
Maximum Operating Pressure	20.7 MPa	Body Material	Steel
Specifications Met	n/a	Industry	Semiconductor
Dimensional Weight	0.1177 lb	Shape	Elbow 90° Long Drop
Configuration	Hose to Port	For Fluid Type	Air (Pneumatic Media)
Connection 1 Size	-10 (Size)	Connection 1 Type	Hose
Connection 2 Size	7/8"-14 inch Thread	Connection 2 Type	Female
Hex Size	n/a	Coating	Chromium 6 Free-plated
Hex Size 1	1 inch (see drawing legend H)	Fitting Length	2.34 inch (see drawing legend A)
Connection Length	41 mm	Tube Outside Diameter	n/a
