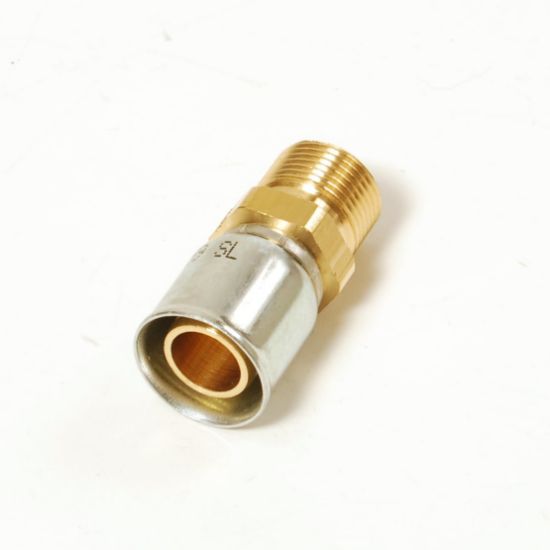

16191N-8-8 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	43 in stock

SKU 16191N-8-8

$49.08/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.406"
Length (inch)	1.65"	Product Style	Compression Air Brake
Connection 2 Size	11/16"-20	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Connection Length	15/16 inch Cut-off allowance (see drawing legend B)
Product Series	91N	Tube Outside Diameter	n/a
Specifications Met	n/a	Brand	Parker
Application	Instrumentation	Connection 1 Size	-8 (Size)
Hex Size	n/a	Connection 2 Type	Male
Hex Size 1	3/4 inch (see drawing legend H)	Shape	Straight
Fitting Length	41 mm	Body Material	Brass (Nipple)
Division	Parflex Division	Configuration	Hose to Port
Maximum Operating Pressure	3000 psi (Dependent on hose)	Connection 1 Type	Hose
Dimensional Weight	0.0522 lb	Connection 2 Size	11/16"-20 inch Thread
Coating	Chromium 6 Free-plated	Division	Parflex Division
For Fluid Type	Chemicals	Industry	Food & Beverage
