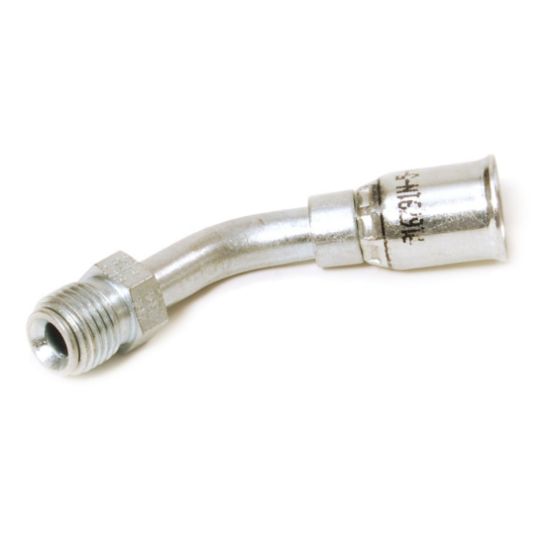

16791N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	21 in stock

SKU 16791N-6-6

$39.95/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.313"
Length (inch)	2.6"	Connection 2 Size	5/8"-18
Product Style	Male Inverted SAE 45° - Swivel - 45° Elbow	Shape	Elbow 45°
Fitting Length	66 mm	Division	Parflex Division
Configuration	Hose to Port	Maximum Operating Pressure	20.7 MPa
Connection 1 Type	Hose	Body Material	Steel
Connection 2 Size	5/8"-18 inch Thread	Coating	Chromium 6 Free-plated
Connection Length	1-5/16 inch Cut-off allowance (see drawing legend B)	Industry	Food & Beverage
Division	Parflex Division	For Fluid Type	Oil
Hex Size	n/a	Connection 1 Size	7.9 mm
Technology	Fluid & Gas Handling	Product Type	Hose Fittings
Product Series	91N	Application	Fluid Control
Dimensional Weight	0.0522 lb	Tube Outside Diameter	n/a
Specifications Met	n/a	Brand	Parker
Connection 2 Type	45° Flare SAE Swivel	Hex Size 1	5/8 inch (see drawing legend H)
