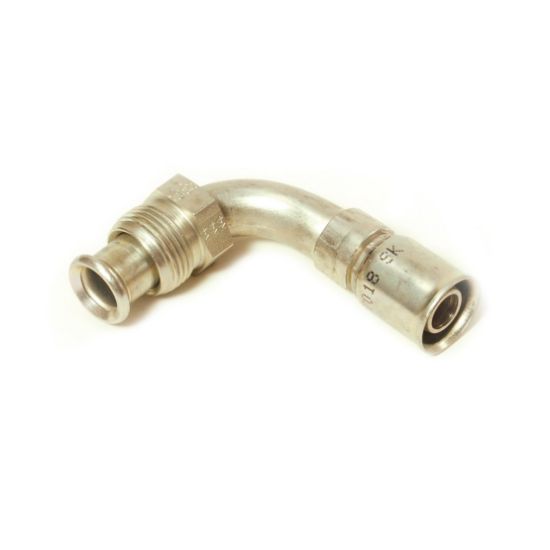

16991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Name: 16991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 16991N-6-6
Price: 30.65 USD
Availability: LimitedAvailability

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

20 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 16991N-6-6

$30.65/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.313"
Connection 2 Size	5/8"-18	Length (inch)	2.08"
Product Style	Male Inverted SAE 45° - Swivel - 90° Elbow	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Connection Length	1-7/16 inch Cut-off allowance (see drawing legend B)	Specifications Met	n/a
Tube Outside Diameter	n/a	Brand	Parker
Application	Chemical Transfer	Hex Size	n/a
Connection 1 Size	5/16 inch Hose I.D.	Hex Size 1	5/8 inch (see drawing legend H)
Connection 2 Type	45° Flare SAE Swivel	Fitting Length	53 mm
Maximum Operating Pressure	20.7 MPa	Body Material	Steel
Shape	Elbow 90°	Product Series	91N
Configuration	Hose to Port	Connection 1 Type	Hose
Dimensional Weight	0.0504 lb	Connection 2 Size	5/8"-18 inch Thread
Division	Parflex Division	For Fluid Type	Chemicals
Industry	Semiconductor	Division	Parflex Division
