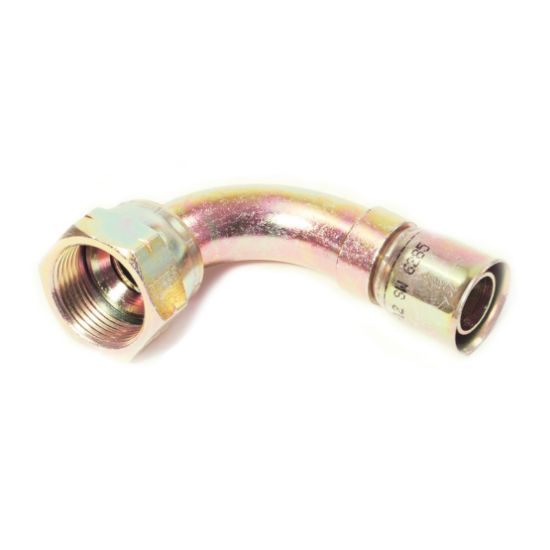

17991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N

Name: 17991N-6-6 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 17991N-6-6
Price: 33.69 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

22 in stock

Olivette, MO	18
TOPEKA, KS	4

Partner Available:

93 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 17991N-6-6

$33.69/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.313"
Connection 2 Size	5/8"-18	Length (inch)	2.06"
Product Style	Female SAE 45 / Swivel - 90° Elbow	Product Type	Hose Fittings
Connection Length	49 mm	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Brand	Parker
Specifications Met	n/a	Tube Outside Diameter	n/a
Application	Hydraulics	Hex Size 1	3/4 inch (see drawing legend H)
Connection 1 Size	-6 (Size)	Connection 2 Type	45° Flare SAE Swivel
Hex Size	n/a	Maximum Operating Pressure	207 bar
Fitting Length	2.06 inch (see drawing legend A)	Shape	Elbow 90°
Body Material	Steel	Connection 1 Type	Hose
Configuration	Hose to Port	Dimensional Weight	0.0235 lb
Product Series	91N	Division	Parflex Division
Connection 2 Size	5/8"-18 inch Thread	For Fluid Type	Hydraulic Fluids
Industry	Semiconductor	Division	Parflex Division
