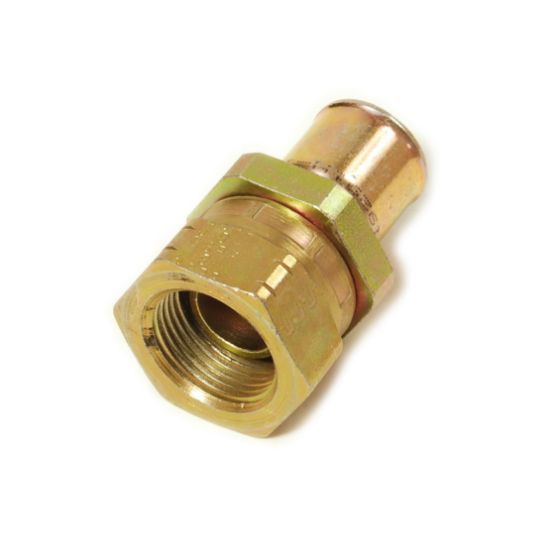

19291N-8-8 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	77 in stock

SKU 19291N-8-8

$85.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.406"
Length (inch)	1.99"	Product Style	Female BSP Parallel Pipe - Swivel Straight (60° Cone)
Connection 2 Size	PF-1/2"-14	Dimensional Weight	0.0424 lb
Product Series	91N	Application	Semiconductor
Specifications Met	n/a	Brand	Parker
Tube Outside Diameter	n/a	Hex Size 1	27 mm (see drawing legend H)
Connection 2 Type	Female	Fitting Length	1.99 inch (see drawing legend A)
Division	Parflex Division	Shape	Straight
Body Material	Steel	Maximum Operating Pressure	3000 psi (Dependent on hose)
Configuration	Hose to Port	Connection 1 Type	Hose
Coating	Chromium 6 Free-plated	Connection 2 Size	PF-1/2"-14 inch Thread
Connection Length	33 mm	Division	Parflex Division
Industry	Food & Beverage	For Fluid Type	Air (Pneumatic Media)
Hex Size	27 mm (see drawing legend J)	Connection 1 Size	-8 (Size)
Technology	Fluid & Gas Handling	Product Type	Hose Fittings
